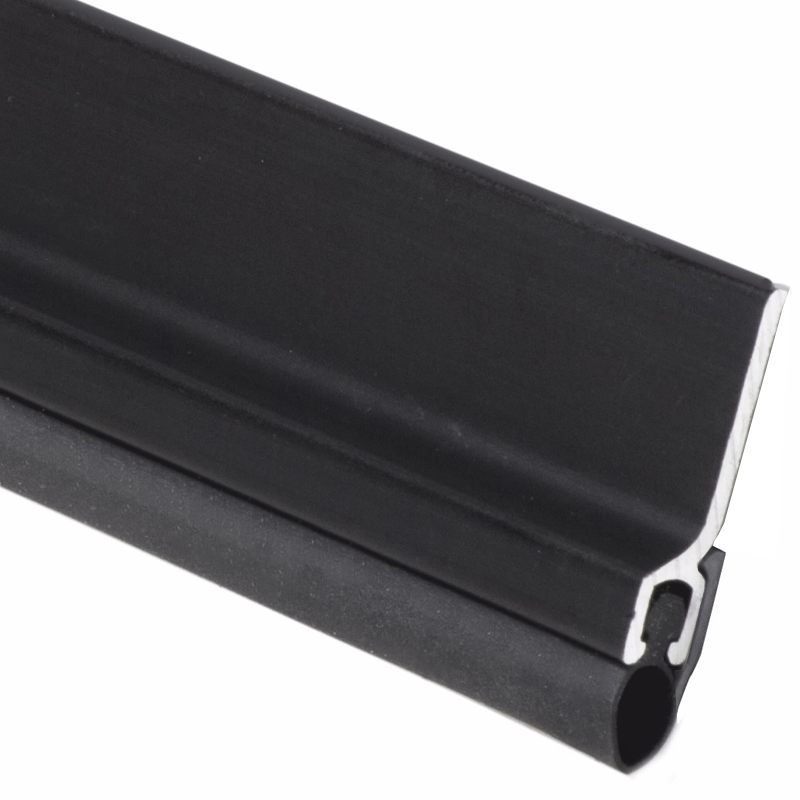

Pemko 303DPK Standard Perimeter Gasketing has a 1/4 Width, and 1-1/8 Height, with a PemkoPrene Insert, in Dark Bronze Anodized Aluminum. Pemko 303DPK Is a Perimeter gasketing, The 303DPK Is designed for openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal.
Features:
Category J gaskets for use with listed steel frames and/or classified steel-covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic-covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes
A rigid jamb weatherstrip is shown mounted on openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal
Stainless steel fasteners are standard. Other fasteners are available
Punched on 6" center with slotted holes for adjustment
Specifications
Available Finishes:
A - Mill Finish Aluminum D - Dark Bronze Anodized Aluminum G - Gold Anodized Aluminum PW - Painted White Aluminum
Insert:
PemkoPrene
Width:
1-1/8" (28.6 mm)
Height:
1/4" (6.4 mm)
Manufacturer:
Pemko
Certifications
BHMA:
BHMA Certified
UL:
Underwriters Laboratory 4L10 Fire Rated - UL10C - Positive Pressure
