Description

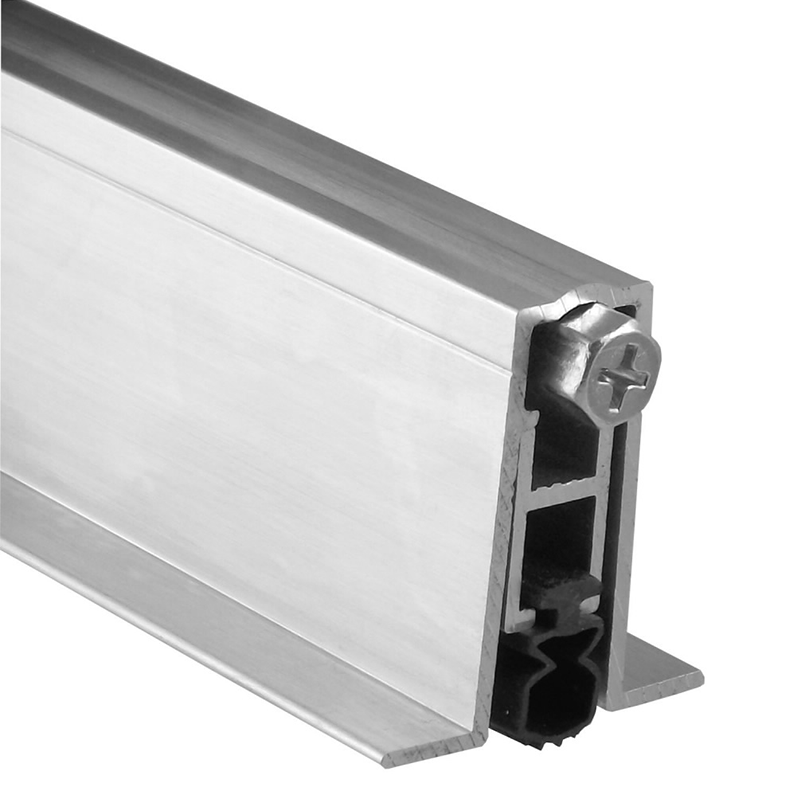

Pemko 411APKL Automatic Door Bottom Full Mortise Black Insert Mill Finish Aluminum
Pemko 411APKL Automatic door bottom consists of an aluminum case that surrounds a movable drop-bar seal. The drop-bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop-bar to seal down against the floor or threshold
Features:
- Smoother action positive seal mechanism. All Pemko automatic door bottoms consist of an aluminum case that surrounds a movable drop-bar seal. The drop-bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop-bar seal down against the floor/threshold
- Most models are now available with nylon brush (NB) seals. The nylon filaments conform extremely well to irregular surfaces such as carpet, stone, and grout lines
- Especially over uneven surfaces, both PemkoPrene (PK) and nylon brush (NB) provide excellent seals to keep out draft, dust, moisture, insects, fumes, light, and sound
- The line includes models which can be mounted to either wood or hollow metal doors
- End plates are provided for all mounting applications
- Leadline available upon request; consult Customer Service for options on profiles
- All Pemko - automatic door bottoms are provided NET length
Specifications
Available Finishes: |
Mill Finish Aluminum Aluminum |
Available Sizes: |
Available in any size ranging from 18" to 72" |
Width: |
9/16" (14.3 mm) |
Height: |
1-3/8" (34.9 mm) |
Insert Type: |
PemkoPrene |
Manufacturer: |
Pemko |
Certifications
BHMA: |
BHMA Certified |
UL: |
Underwriters Laboratory 4L10 Fire Rated - UL10C - Positive Pressure |
Other Certifications: |
Air Infiltration Tested Sound Tested - ASTM E90 Smoke Tested - UL1784 |
