Pemko CFM83SLFHD1HT Full-Mortise Heavy Duty Short Leaf Flush Hospital Tip Continuous Geared Hinge in Clear Anodized Finish - 83" Fire Rated

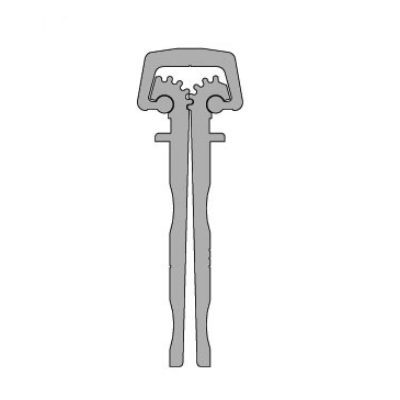

Pemko CFM83SLFHD1HT is a Continuous Geared Hinge Full-Mortise Heavy Duty Short Leaf Flush, with a Hospital tip in Clear Anodized Finish Fire Rated - UL10C - Positive Pressure. Pemko CFM Hinges Are Designed for use with doors that range between 1-3/4" to 2-1/4", for bifold applications to keep the faces of the doors flush.


Features

  • Designed for use with doors that range between 1-3/4" to 2-1/4"
  • Designed for bifold applications to keep the faces of the doors flush

Specifications

Finish: C - Clear Anodized
Length: 83"
Width: 25/32" (19.8 mm)
Height: 2-3/8" (60.4 mm)
Manufacturer: Pemko

Certifications

BHMA: BHMA Certified
UL: Fire Rated - UL10C - Positive Pressure
Other Certifications: PemkoHinge Fire Rating - UL76Y2

Continuous Hinge Handing Chart
