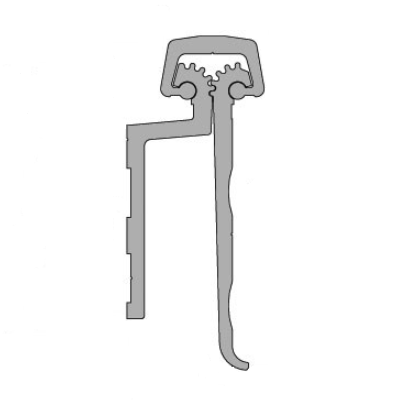

Pemko CFM85SFHD1 Continuous Geared Hinge Full-Mortise Heavy Duty Safety Clear Anodized Finish - 85"



The Pemko CFM85SFHD1 Continuous Geared Hinge Full-Mortise Heavy Duty Safety Clear Anodized Finish, Pemko's heavy-duty anodized aluminum Full Mortise Safety continuous geared hinges are designed mainly for new door applications in child care and nursing facilities. These hinges require extra clearance


Features CFM85SFHD1

  • Applied to conceal both leaves
  • Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread-forming
  • Standard model: 16 fasteners required for each leaf
  • Standard duty hinge. 6" between bearing centers
  • Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80

Specifications

Finish: C - Clear Anodized
Length: 85"
Width: 13/16" (20.6 mm) (between frame edge and door edge, square edge door applications)
27/32" (21.4 mm) (between frame edge and door edge, beveled edge door applications)
Height: 2-9/16" (65.1 mm) (to top cap/frame edge & door edge sides)
1-1/2" (38.1 mm) (frame edge side - leaf)
Manufacturer: Pemko

Certifications

BHMA: BHMA Certified

Continuous Hinge Handing Chart
