Description

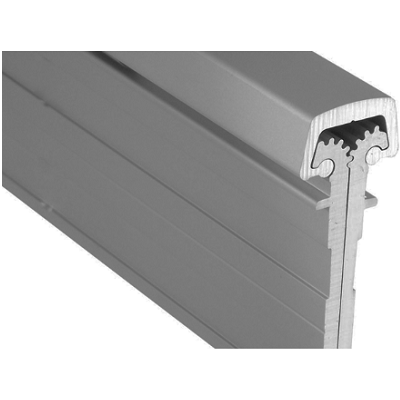

Pemko CFM85SLIHD1 Full-Mortise Heavy Duty Short Leaf Inset Continuous Geared Hinge in Clear Anodized Finish - 85"
Pemko CFM85SLIHD1 is a heavy-duty anodized aluminum Full Mortise shortleaf inset continuous geared hinges are designed mainly for new door applications
Pemko CFM85SLIHD1 Features
- Designed for use with doors that range between 1-3/4" to 2-1/4"
- Designed for use with hollow metal frames where the inset conforms to S.D.I. specifications for aligning doors and frames
- Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
Pemko CFM85SLIHD1 Specifications
| Finish: | C - Clear Anodized |
| Length: | 85" |
| Width: | 25/32" (19.8 mm) |
| Height: | 2-3/8" (60.4 mm) |
| Manufacturer: | Pemko |
Pemko CFM85SLIHD1 Certifications
| BHMA: | BHMA Certified |
| UL: | Fire Rated - UL10C - Positive Pressure |
| Other Certifications: | PemkoHinge Fire Rating - UL76Y2 |
