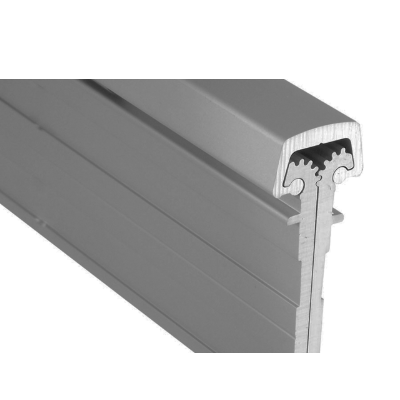

Pemko CFM95SLI Full-Mortise Short Leaf Inset Continuous Geared Hinge in Clear Anodized Finish - 95"
Pemko CFM95SLI is a standard duty anodized aluminum Full Mortise shortleaf inset continuous geared hinges are designed mainly for new door applications. Also available in heavy-duty models
Pemko CFM95SLI Features
- Designed for use with doors that range between 1-3/4" to 2-1/4"
- Designed for use with hollow metal frames where the inset conforms to S.D.I. specifications for aligning doors and frames
- Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
Pemko CFM95SLI Specifications
|Finish:||C - Clear Anodized|
|Width:||25/32" (19.8 mm)|
|Height:||2-3/8" (60.4 mm)|
Pemko CFM95SLI Certifications
|UL:||Fire Rated - UL10C - Positive Pressure|
|Other Certifications:||PemkoHinge Fire Rating - UL76Y2|
