Pemko CSPFM83HD1 Special Heavy Duty Full-Mortise Continuous Geared Hinge in Clear Anodized Finish - 83"

  • SKU: CSPFM83HD1

Pemko CSPFM83HD1 Special Heavy Duty Full-Mortise Continuous Geared Hinge in Clear Anodized Finish - 83"

  • SKU: CSPFM83HD1
Sale price$255.20/ea
In Stock
In Stock
Visa Mastercard American Express Discover Shop Pay Apple Pay

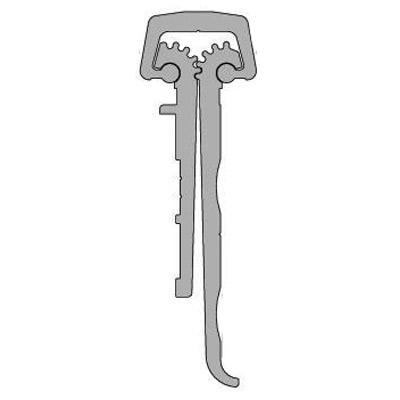

Pemko CSPFM83HD1 Special Heavy Duty Full-Mortise Continuous Geared Hinge in Clear Anodized Finish - 83"

Pemko's heavy-duty anodized aluminum Special Full Mortise continuous geared hinges are designed for door and frame applications where the hinge leaf may interfere with the weatherstrip, thermo-break, or applied stop to the frame

Features:

  • Applied to conceal both leaves
  • Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread-forming
  • Standard model: 16 fasteners are required for each leaf
  • Standard duty hinge. 6" between bearing centers
  • Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal, and steel-covered composite type rated up to 3 hours, wood-covered composite type rated up to and including 1-1/2 hours. Also, the wood core is rated up to and including 20 minutes without a hose stream
  • Specific door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
Finish: C - Clear Anodized
Length: 83"
Width: 5/16" (7.9 mm) (between frame edge and door edge)
Cap Width: 25/32" (19.8 mm)
Height: 1-1/4" (31.8 mm) (to flange/frame edge side)
11/16" (17.5 mm) (frame edge side flange to top of cap)
Manufacturer: Pemko
BHMA: BHMA Certified
UL: Fire Rated - UL10C - Positive Pressure
Other Certifications: PemkoHinge Fire Rating - UL76Y2

Continuous Hinge Handing Chart
