Pemko CSPFM95SLFHD1 Special Heavy Duty Full-Mortise Short Leaf Flush Continuous Geared Hinge in Clear Anodized Finish - 95"

  • SKU: CSPFM95SLFHD1

Pemko CSPFM95SLFHD1 Special Heavy Duty Full-Mortise Short Leaf Flush Continuous Geared Hinge in Clear Anodized Finish - 95"

  • SKU: CSPFM95SLFHD1
Sale price$248.40/ea
In Stock
In Stock

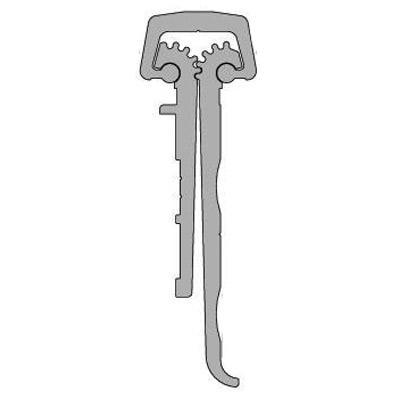

Pemko CSPFM95SLFHD1 Special Heavy Duty Full-Mortise Short Leaf Flush Continuous Geared Hinge in Clear Anodized Finish - 95"

Pemko's heavy duty anodized aluminum Special Full Mortise - Short Leaf Flush continuous geared hinges are designed for door and frame applications where the hinge leaf may interfere with the weatherstrip, thermo-break, or applied stop to the frame


Features

  • Applied to conceal both leaves
  • Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread-forming
  • Standard model: 16 fasteners required for each leaf
  • Standard duty hinge. 6" between bearing centers
  • Tested and certified by Underwriters Laboratories Inc. (the USA and Canada) to standard UL10B, UL10C, and UBC 7.2 (positive pressure) for up to a 3-Hour (A-Label) fire listing for all 4 ft. 0 in. x 10 ft. 0 in. and 8 ft. 0 in. x 10 ft. 0 in. door and frame assemblies. Fire listing certifications apply to all approved hollow metal and wood door assemblies in drywall or masonry construction
  • Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80

Specifications

Finish: C - Clear Anodized
Length: 95"
Width: 5/16" (7.9 mm) (between frame edge and door edge)
Cap Width: 25/32" (19.8 mm)
Height: 1-1/4" (31.8 mm) (to flange/frame edge side)
11/16" (17.5 mm) (frame edge side flange to top of cap)
1-11/16" (42.9 mm) (to flange/door edge side)
Manufacturer: Pemko

Certifications

BHMA: BHMA Certified
UL: Fire Rated - UL10C - Positive Pressure
Other Certifications: PemkoHinge Fire Rating - UL76Y2

Continuous Hinge Handing Chart
