Pemko DFS83CPHD1 Full-Surface Heavy Duty Center Pivot Continuous Geared Hinge in Dark Bronze Anodized Finish - 83"

  • SKU: DFS83CPHD1

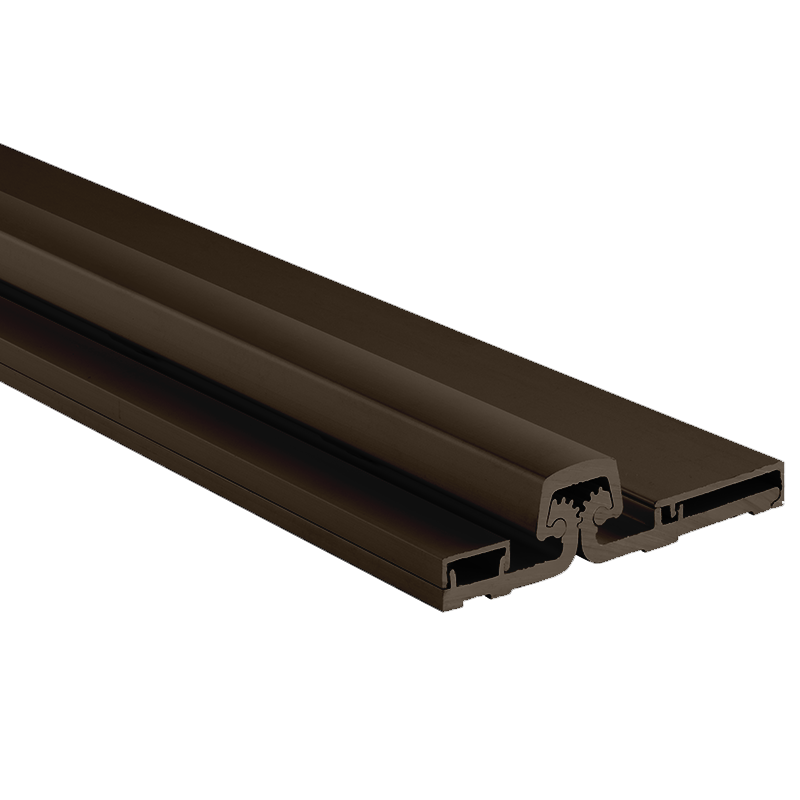

Pemko DFS83CPHD1 Full-Surface Heavy Duty Center Pivot Continuous Geared Hinge Dark Bronze Anodized
Pemko DFS83CPHD1 Full-Surface Heavy Duty Center Pivot Continuous Geared Hinge Dark Bronze Anodized
Pemko DFS83CPHD1 Full-Surface Heavy Duty Center Pivot Continuous Geared Hinge Dark Bronze Anodized dimensions
All PEMKO Products

Pemko DFS83CPHD1 Full-Surface Heavy Duty Center Pivot Continuous Geared Hinge in Dark Bronze Anodized Finish - 83"

  • SKU: DFS83CPHD1
  • ✓
    Available (2‑3 Weeks)
    2-3 Weeks Lead Time
Your Price
$252.75/ea

Pemko DFS83CPHD1 Full-Surface Heavy Duty Center Pivot Continuous Geared Hinge in Dark Bronze Anodized Finish - 83"

Pemko's heavy-duty anodized aluminum Full Surface Center Pivot continuous geared hinges are designed mainly for retrofit work and are applied to the exposed surfaces of the door and frame

Features:

  • Easily replace butt hinges since no door or frame adjustments are necessary and are more versatile with restricted frame faces
  • Standard model: 12 fasteners are required for each leaf
  • Fasteners - Frame Portion - All fasteners are #12-24 x 7/16" Phillips Head, Type C, thread forming
  • Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal, and steel-covered composite type rated up to 3 hours, wood-covered composite type rated up to and including 1-1/2 hours. Also, the wood core is rated up to and including 20 minutes without a hose stream
  • Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
Finish: D - Dark Bronze Anodized
Length: 83"
Width: 1-3/16" (30.2 mm) (frame side - leaf)
2" (50.8 mm) (door side - leaf)
3-3/16" (80.9 mm) (total width of the hinge)
Cap Width: 25/32" (19.8 mm)
Height: 3/4" (19.1 mm) (total height of hinge)
Manufacturer: Pemko
BHMA: BHMA Certified
UL: Fire Rated - UL10C - Positive Pressure
Other Certifications: PemkoHinge Fire Rating - UL76Y2
Product Cut Sheet

Continuous Hinge Handing Chart
