Pemko DFS95CP Full-Surface Center Pivot Continuous Geared Hinge in Dark Bronze Anodized Finish - 95"

  • SKU: DFS95CP

Pemko DFS95CP Full-Surface Center Pivot Continuous Geared Hinge in Dark Bronze Anodized Finish - 95"

  • SKU: DFS95CP
Sale price$240.00/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time

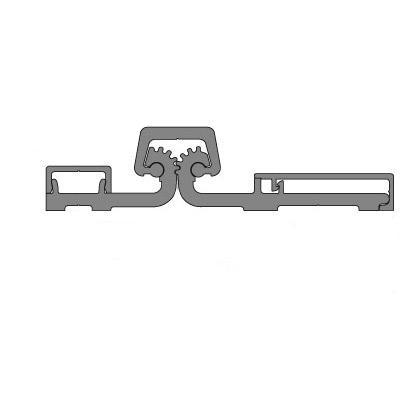

Pemko DFS95CP Full-Surface Center Pivot Continuous Geared Hinge in Dark Bronze Anodized Finish - 95"

Pemko's standard-duty anodized aluminum Full Surface Center Pivot continuous geared hinges are designed mainly for retrofit work and are applied to the exposed surfaces of the door and frame. Also available in heavy-duty models


Features

  • Easily replace butt hinges since no door or frame adjustments are necessary and are more versatile with restricted frame faces
  • Standard model: 12 fasteners required for each leaf
  • Fasteners - Frame Portion - All fasteners are #12-24 x 7/16" Phillips Head, Type C, thread-forming
  • Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal, and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also, wood core rated up to and including 20 minutes without hose stream
  • Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80

Specifications

Finish: D - Dark Bronze Anodized
Length: 95"
Width: 1-3/16" (30.2 mm) (frame side - leaf)
2" (50.8 mm) (door side - leaf)
3-3/16" (80.9 mm) (total width of hinge)
Cap Width: 25/32" (19.8 mm)
Height: 3/4" (19.1 mm) (total height of hinge)
Manufacturer: Pemko

Certifications

BHMA: BHMA Certified
UL: Fire Rated - UL10C - Positive Pressure
Other Certifications: PemkoHinge Fire Rating - UL76Y2

Continuous Hinge Handing Chart
