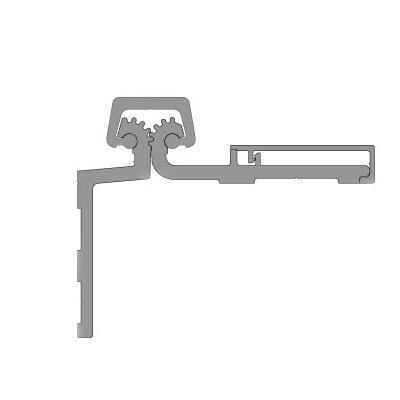

Pemko DHS95SFHD1 Half-Surface Heavy Duty Safety Continuous Geared Hinge in Dark Bronze Anodized Finish - 95"
Pemko's standard duty anodized aluminum Half Surface Safety continuous geared hinges are designed mainly for retrofit work in child care and nursing facilities and are applied to the exposed surface of the frame rabbet. Also available in heavy-duty models
Features
Designed for use with hollow metal frames, where the inset conforms to S.D.I. specifications for aligning doors and frames
Allows for adjustments in order to properly align the edge of the door to the frame
Fasteners - Frame Portion - All fasteners are #12-24 x 7/16" FHUC, Type C, threadforming
Standard model: 16 fasteners required for each leaf
Fasteners - Door Portion - a. Thru-bolt - 1/4-20 x 1-5/8". - Standard Duty Hinges - 4 required. - b. Shoulder Bolt - 1/4-20 x 1" PCH. - Standard Duty Hinges - 4 required. - c. Pan Head Self Drilling #12 x 3/4". - Standard Duty Hinges - 6 required
Standard duty hinge. 6" between bearing centers
Specifications
Finish:
D - Dark Bronze Anodized
Length:
95"
Width:
2" (50.8 mm) (between frame leaf and door leaf edge) Cap Width: 25/32" (19.8 mm)
