Pemko DSPFM95HD1 Special Heavy Duty Full-Mortise Continuous Geared Hinge in Dark Bronze Anodized Finish - 95"

  • SKU: DSPFM95HD1

Pemko DSPFM95HD1 Special Heavy Duty Full-Mortise Continuous Geared Hinge in Dark Bronze Anodized Finish - 95"

  • SKU: DSPFM95HD1
Sale price$291.50/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time
Visa Mastercard American Express Discover Shop Pay Apple Pay

Pemko DSPFM95HD1 Special Heavy Duty Full-Mortise Continuous Geared Hinge in Dark Bronze Anodized Finish - 95"

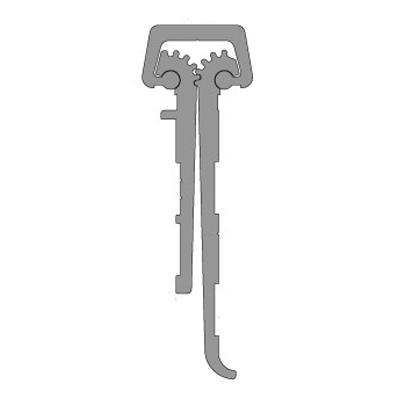

Pemko's heavy-duty anodized aluminum Special Full Mortise continuous geared hinges are designed for door and frame applications where the hinge leaf may interfere with the weatherstrip, thermo-break, or applied stop to the frame


Features

  • Applied to conceal both leaves
  • Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread-forming
  • Standard model: 16 fasteners required for each leaf
  • Standard duty hinge. 6" between bearing centers
  • Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal, and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also, wood core rated up to and including 20 minutes without hose stream
  • Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80

Specifications

Finish: D - Dark Bronze Anodized
Length: 95"
Width: 5/16" (7.9 mm) (between frame edge and door edge)
Cap Width: 25/32" (19.8 mm)
Height: 1-1/4" (31.8 mm) (to flange/frame edge side)
11/16" (17.5 mm) (frame edge side flange to top of cap)
Manufacturer: Pemko

Certifications

BHMA: BHMA Certified
UL: Fire Rated - UL10C - Positive Pressure
Other Certifications: PemkoHinge Fire Rating - UL76Y2

Continuous Hinge Handing Chart
