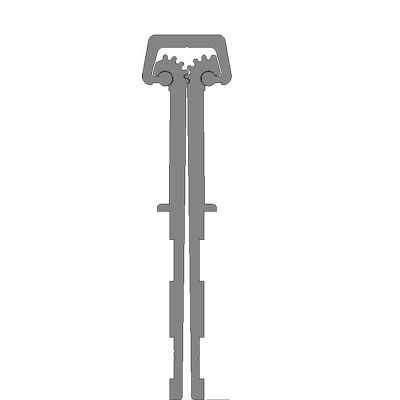

Pemko WTCFM95HD1 Continuous Geared Hinge Wide Throw Full-Mortise Heavy Duty Clear Anodized Finish, Pemko's WTCFM95HD1 heavy-duty anodized aluminum Wide Throw Full Mortise continuous geared hinges are designed mainly for new door applications that require extra clearance due to special frame, door, or wall design
Features
- Applied to conceal both leaves
- More clearance between the door and frame allows your door to open 180 degrees
- Available only in heavy-duty (HD1) to support larger doors
- Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread-forming
- Heavy-duty models: 20 fasteners required for each leaf
- Heavy-duty hinge (HD1): 3" between bearing centers
- Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal, and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also, wood core rated up to and including 20 minutes without hose stream
- Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
Specifications
| Finish: |
C - Clear Anodized |
| Length: |
95" |
| Width: |
5/16" (7.9 mm) (between frame edge and door edge, square edge door applications)
3/8" (9.5 mm) (between frame edge and door edge, beveled edge door applications)
Cap Width: 25/32" (19.8 mm) |
| Height: |
1-9/16" (39.7 mm) (to top cap/frame edge & door edge sides)
1-11/16" (42.9 mm) (to flange/door edge side) |
| Manufacturer: |
Pemko |
Certifications
| BHMA: |
BHMA Certified |
| UL: |
Fire Rated - UL10C - Positive Pressure |
| Other Certifications: |
PemkoHinge Fire Rating - UL76Y2 |
