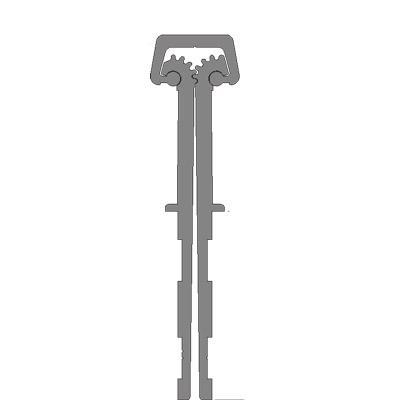

Pemko WTDFM83HD1 Wide Throw Full-Mortise Heavy Duty Continuous Geared Hinge in Dark Bronze Anodized Finish - 83"

PEMKOSKU: WTDFM83HD1

Price:
Sale price$354.96
In Stock

Description

Pemko's heavy duty anodized aluminum Wide Throw Full Mortise continuous geared hinges are designed mainly for new door applications that require extra clearance due to special frame, door or wall design


Features

  • Applied to conceal both leaves
  • More clearance between the door and frame allows your door to open 180 degrees
  • Available only in heavy duty (HD1) to support larger doors
  • Fasteners are No. 12-24 x 7/16" FHUC, Type C, threadforming
  • Heavy duty models: 20 fasteners required for each leaf
  • Heavy duty hinge (HD1): 3" between bearing centers
  • Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also wood core rated up to and including 20 minutes without hose stream
  • Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80

Specifications

Finish: D - Dark Bronze Anodized
Length: 83"
Width: 5/16" (7.9 mm) (between frame edge and door edge, square edge door applications)
3/8" (9.5 mm) (between frame edge and door edge, beveled edge door applications)
Cap Width: 25/32" (19.8 mm)
Height: 1-9/16" (39.7 mm) (to top cap/frame edge & door edge sides)
1-11/16" (42.9 mm) (to flange/door edge side)
Manufacturer: Pemko

Certifications

BHMA: BHMA Certified
UL: Fire Rated - UL10C - Positive Pressure
Other Certifications: PemkoHinge Fire Rating - UL76Y2
