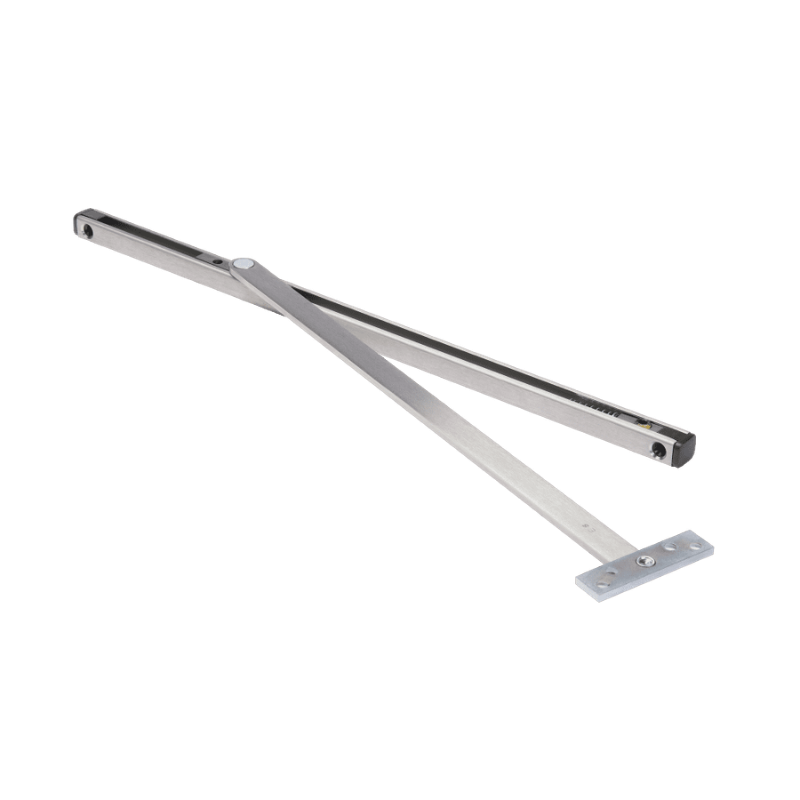

Rixson 10-246-630 Overhead Door Stop Surface Mounted, Multi Function, Dr Width Use Butts or Pivots, 24 1/6-30 Inch, Max 110 Deg, 1-3/4 Inch Tk Dr, Non Handed, US32D Satin Stainless Steel Finish

The Rixson 10-246-630 is a surface-mounted overhead door stop built to control and protect openings that use standard butt hinges or pivots. Designed for doors measuring 24-1/16 to 30 inches wide and 1-3/4 inches thick, this multi-function unit provides a positive stop while limiting door swing to a maximum of 110 degrees. Its non-handed design simplifies specification and installation on either left- or right-hand openings. Finished in US32D (630) satin stainless steel, the 10-246 combines durable construction with a clean, corrosion-resistant appearance suited to demanding commercial environments where reliable door control is essential.

Features

• Surface-mounted overhead stop for straightforward installation on the door and frame.
• Multi-function operation delivers dependable hold-open and positive stop control.
• Sized for doors from 24-1/16 to 30 inches wide, matching size 6 templates.
• Compatible with openings hung on standard butt hinges or pivots.
• Limits door swing to a maximum of 110 degrees to protect walls and adjacent hardware.
• Non-handed design fits both left- and right-hand door applications.
• Suitable for 1-3/4 inch thick doors in commercial settings.
• Satin stainless steel US32D finish resists wear and corrosion.

Functional Details

The 10-246 multi-function overhead stop controls the door's opening arc, providing a firm stop at the set degree of opening while offering hold-open capability. The channel and arm assembly work together to absorb impact and prevent over-travel, protecting both the door and surrounding surfaces.

• Surface applied overhead stop and holder.
• Multi-function: hold-open and stop.
• For use with butt hinges or pivots.
• Maximum opening 110 degrees.

Arm Type Details

This unit uses a surface-mounted overhead arm and channel configuration. The arm travels within the channel to guide the door's swing, engaging the stop mechanism at the preset opening angle to hold or halt the door as required.
