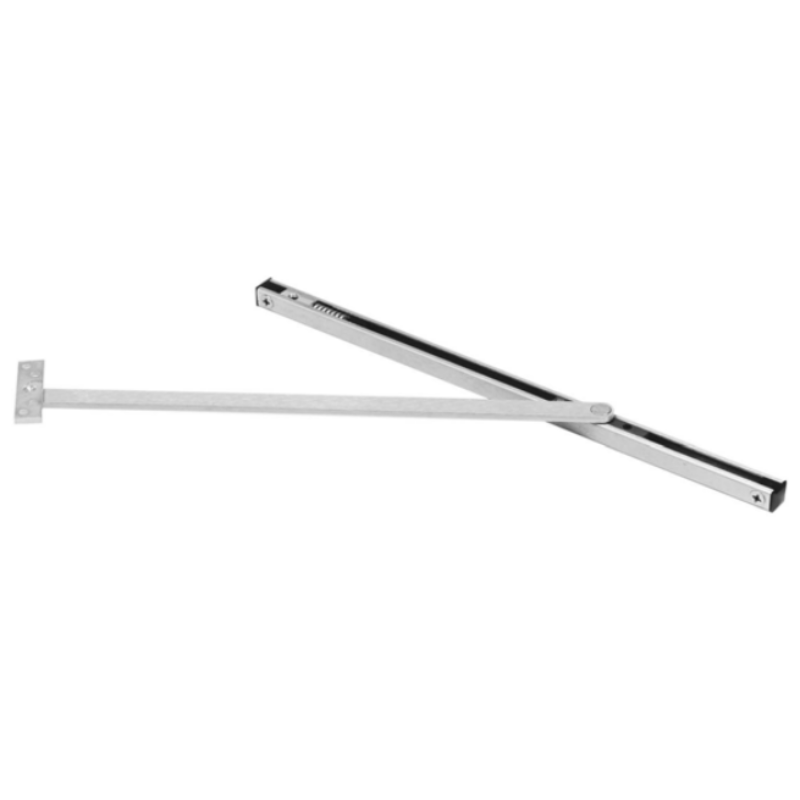

Rixson 10-336-630 Overhead Door Stop, Surface Mounted, Standard Duty, Adjustable, Satin Stainless Steel Finish

  • SKU: 10336630
Rixson 10-336-630
Zoomed view
All RIXSON Products

Rixson 10-336-630 Overhead Door Stop, Surface Mounted, Standard Duty, Adjustable, Satin Stainless Steel Finish

  • SKU: 10336630
  • ✓
    Ships in (1 Week)
    1 Week Lead Time
Your Price
$222.64/ea
0% Net 30 Days: Apply Now

Rixson 10-336-630 Overhead Door Stop Surface Mounted, Dr Width Use Butts or Pivots, Standard Duty, Adjustable, 30 1/6-36 Inch, Max 110 Degrees, 1-3/4 Inch Thick Door, Non Handed, 30-1/16" - 36" Door Width for Butt Offset Pivots, 32-1/16" - 38" Door Width for Center Hung Pivots, US32D Satin Stainless Steel Finish

The Rixson 10-336-630 overhead door stop delivers dependable performance for commercial door applications. This surface-mounted unit is engineered to work with butt hinges, offset pivots, and center-hung pivot systems, accommodating door openings from 30-1/16" to 38" based on hinge type. Designed for standard-duty service, it provides adjustable hold-open control up to 110 degrees and suits 1-3/4" thick doors. The satin stainless steel finish resists corrosion in high-traffic environments, while its non-handed design simplifies installation across diverse architectural specifications. An essential component for facilities requiring precise, maintenance-free door control.

Application

  • Interior or exterior doors
  • Doors are single acting
  • Non-handed
  • Recommended for high traffic, heavy abuse installations

Features

  • Standard duty, adjustable
  •  30-1/16" - 36" Door Width for Butt Offset Pivots
  • 32-1/16" - 38" Door Width for Center Hung Pivots
  • Slide track design
  • Degree of opening fully adjustable and can be adapted to changing needs
  • Heavy shock absorber spring provides compression before deadstop
  • Can be ordered specifically as a stop, friction stay, or hold open.
  • Multi-function unit is shipped as a stop. Can be converted to a hold open or friction in field. 5012- PKG (Adapter kit) included
  • Complete screw packet with thru-bolts for door, wood and machine screws for frame
  • Torx® screws optional for security applications, but heavy-duty units should be considered for high-security applications
  • Durable slider cam and shock block
  • 110° maximum opening
  • 3/4" square channel
  • For pull side mounting or flush and rabbeted mounting on push side use angle jamb bracket adapter 5258

Compliance

  • ANSI/BHMA A156.8, Grade 1 Certified (
    Stop Models)
  • Stop function UL listed for fire door assemblies
 Butt Offset Pivots Center Hung Pivots Friction H.O. Stop Multi
18 - 24 21 - 26-1/2 10-116 10-126 10-136 10-146
24-1/16 - 30 26-9/16 - 32 10-216 10-226 10-236 10-246
30-1/16 - 36 32-1/16 - 38 10-316 10-326 10-336 10-346
36-1/16 - 42 38-1/16 - 45 10-416 10-426 10-436 10-446
42-1/16 - 48 45-1/16 - 48 10-516 10-526 10-536 10-546



Manufacturer Rixson
SKU 10-336-630
Origin USA
Unit of Measure Each
Base Material Stainless Steel
Limited Warranty 2 Year
