Application
• Interior Doors
• Weight to 250 lbs.*
• Door Width up to 3'6" (1067mm)
• Handed

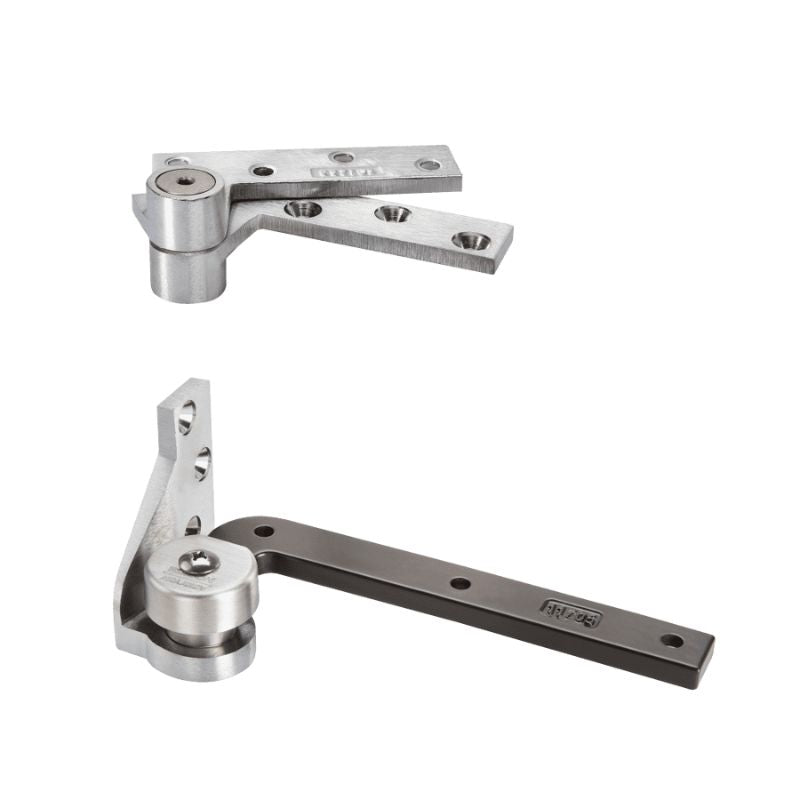

• Light-Duty/Light Weight Jamb Attached Pivot Set
* Door size & weight guidelines are determined using the appropriate number of intermediate pivots
• Standard top pivot 180 included
• 119 intermediate pivots recommended (order separately)
• Bottom pivot mortised into side jamb
• Not available for fire-rated doors
• Non-ferrous base material
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot
• 3/4" (19mm) offset (measured from the centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2"
• Weight of door borne by floor
• Furnished with wood and machine screws
• Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard
SKU:
Your Price
/ea
