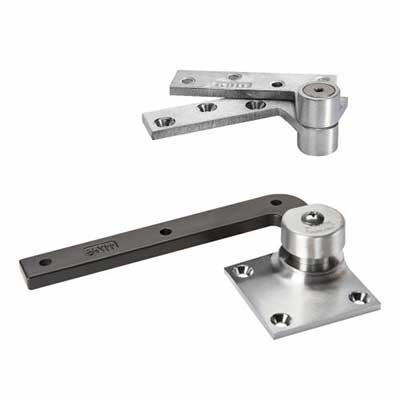

Rixson 117 x 1-1/2 626 RH, 1-1/2" Inch Offset Pivot Set For Doors Up Tp 150 LBS, Includes 180 x 1-1/2OS Top Pivot, Right Handed, US26D/626 Brushed Chrome Finish
Features
Features sealed ball bearing raceway on the floor pivot
For door widths up to 3'6"
Door will swing 180 degrees (trim permitting)
Bronze bearing with hardened and ground steel stud in top pivot
1-1/2" offset hung pivot sets locate the pivot point 3/4" from the heel edge of the door and 1-1/2" from the face of the door
1-1/2" pivot sets are used to clear trim or allow decorative panels to be applied to the face of the door
Doors over 60" require the use of an intermediate pivot. Every additional 30" of door height warrants the addition of another intermediate pivot. For an intermediate pivot use our 1-1/2" Offset Intermediate Pivot.
Bottom pivot is designed to be mortised into the floor
