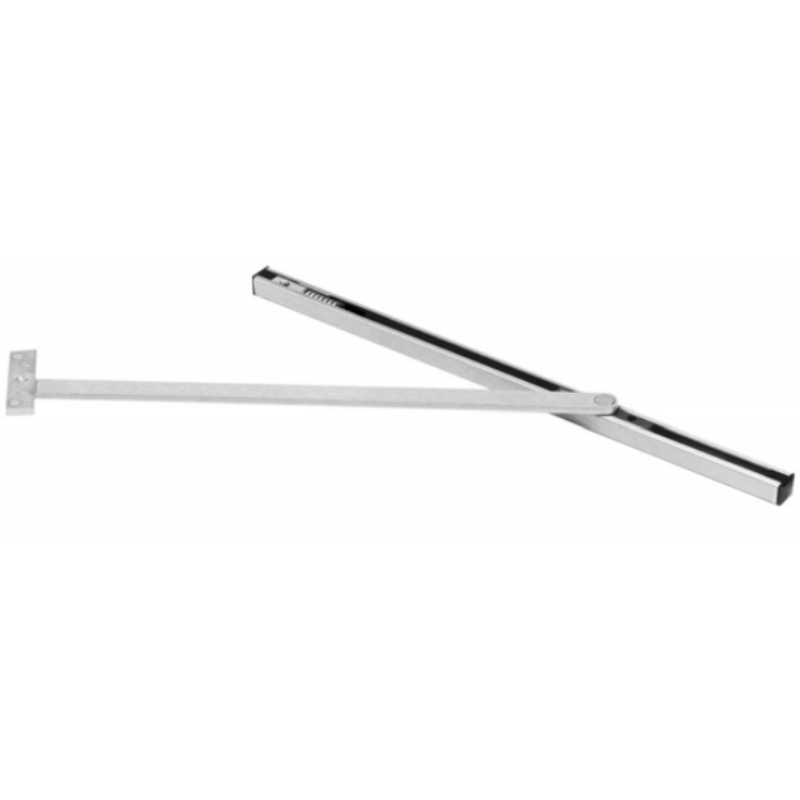

Rixson 2-346-630 Concealed Overhead Door Stop Multi Function, For Moderate Traffic, Medium Weight Doors, Single Or Double Acting Doors, Max 110 Degrees, 1-3/4 Inch Thick Dr, Non Handed, US32D Stainless Steel Finish
The Rixson 2-346-630 delivers reliable door control in a concealed overhead design built for moderate-use environments. This multi-function unit accommodates both single and double-acting doors up to medium weight, with adjustable opening angles reaching 110 degrees maximum. Engineered for doors up to 1-3/4 inches thick, it operates independently of door swing direction and features a durable US32D stainless steel finish. Ideal for commercial applications requiring dependable performance without visible hardware.
Application
- Interior or exterior doors
- Single or double acting
- Non-handed
- Recommended for high traffic, heavy abuse installations
Features
- Heavy-duty, adjustable
- Slide track design
- Order specifically as a stop or hold open
- 1-3/4" minimum door thickness, for thicker doors consult factory
- 110° maximum opening (except 1ADJ for center hung 30-36" door which is 105°)
- Degree of opening is fully adjustable and can be adapted to changing needs
- Heavy shock absorber spring provides 5-7° compression before dead stop
- 1-3/16" square channel
- Complete screw packet kit for installation in wood or
metal door and frame
- For security areas, Torx® screws available for exposed fasteners
- Durable slider cam and shock block
Compliance
- ANSI/BHMA A156.8, Grade 1 Certified (Hold Open,
Stop Models)
- Stop function UL listed for fire door assemblies
