Description

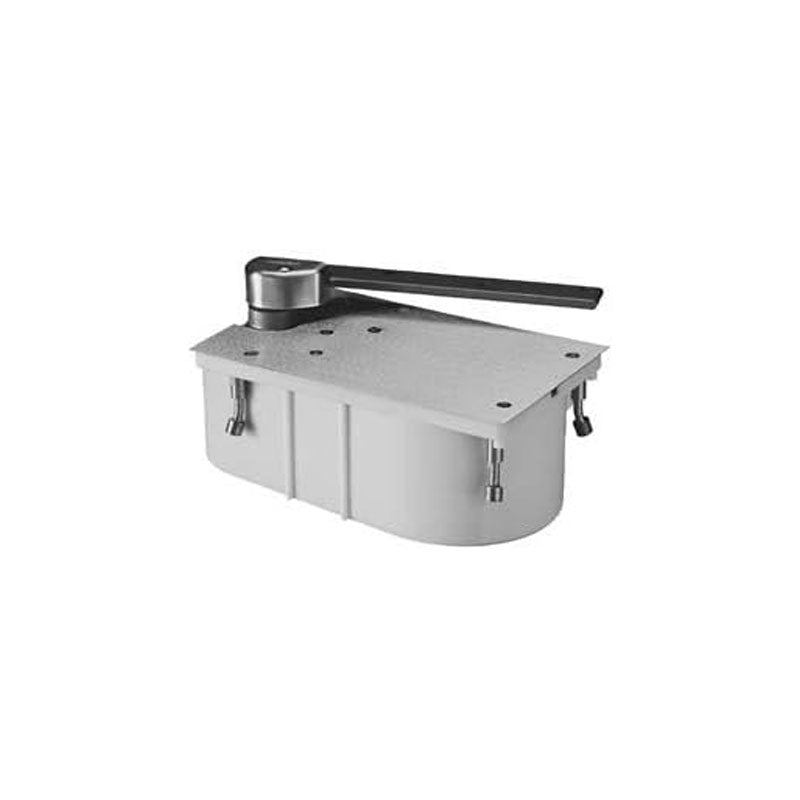

The Rixson 27105N-LAP is a Heavy Duty Closer, with 105 Degree swing, No Hold Open, is Offset Hung Floor, comes Handed, and is sold Less All Parts.
Applications
- Single Acting, Handed
- Exterior or Interior Doors
- Weight to 450 lbs.*
- Door Width up to 4'0" (1219mm)
Features
- Built-in positive dead stop prevents door from swinging
beyond the desired opening degree (specify 85°, 90°,
95°, 105°) -
Separate and independent valves for closing speed,
latch speed and backcheck180 top pivot included
- Available non-hold open (N) or selective hold open
(S) at same degree as dead stop
• Delayed action option-prefix “DA” (Non-hold open
closers only) -
Models available to meet ICC/ANSI A117.1 low
opening force requirements, prefix “PH”. (For 8-1/2
lbs. of opening force prefix PH and suffix 8-1/2 lbs.)
Available non-hold open (N) only
-
Available 1-1/2" offset, for doors with 3/4"cladding or frames with applied molding, maximum door weight 250 lbs.Built-in hydraulic backcheck cushions opening from 140° to 180°
- Cycolac, rust-proof cement case
- Vertical door adjustment
- Standard top pivot: #180 included
-
For fire rated openings (up to 3 hour assemblies) prefix “F”. This package will be supplied with a steel top pivot (F180) and a non-hold open closer.
Intermediate pivot required: FM19 (order separately),
see page 18Furnished with wood and machine screws
- Furnished with wood and machine screws
Benefits
- Ideal for applications requiring door to swing to 180°
- Heavy-duty closer provides long life of consistent operation
- Aesthetically appealing way to support and control the door
- Weight of door is supported by floor closer
Product Specs
| Manufacturer | Rixson |
| SKU | 27105N LAP |
| Installation | Commercial |
| Unit of Measure | Each |
| Limited Warranty | 10 Years |
| Fire Rated | No |
Technical Specs
| Type | Concealed Floor |
| Mounting Location | In Floor |
| Mounting Style | Offset |
| Hold Open | No |
| Product Type | Floor Closers |
