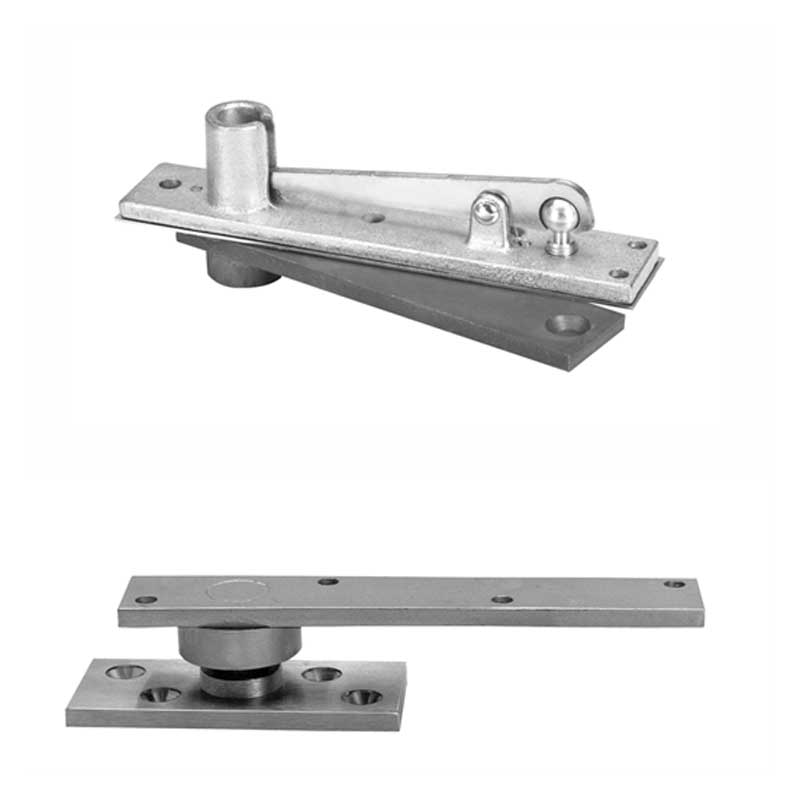

Rixson 370 Center Hung Pivot Set (Includes Top & Bottom Pivot)
• Exterior or Interior Doors
• Weight to 500 lbs.
• Door Sizes up to 3'8"x 8'6"* (1118 x 2591mm)
Center hung pivots are door hanging means only. To close doors, see floor closer sections.
*For doors taller than 8'6" use top pivot 345 in lieu of 340
• Standard top pivot 340 included
• Bottom pivot mounts directly to the floor
• Pivot point centered in thickness of the door
• Door must have a radius on pivot edge
• Pivot set features sealed bearings for protection against weather and debris
• Not allowed for use on labeled doors and frames
• Furnished with wood and machine screws
• Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard
