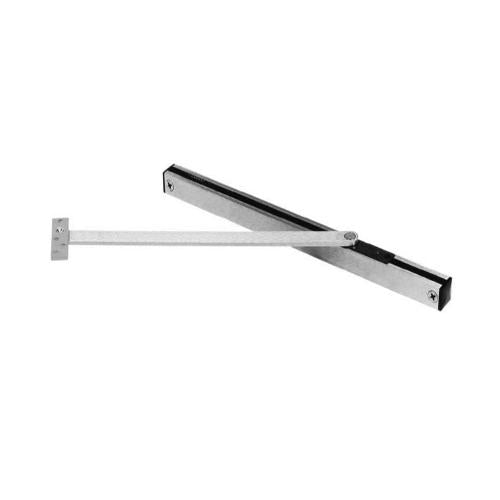

Rixson 9-326-630 OverHead Surface Mounted Heavy Duty Stop, Hold Open, Satin Stainless Steel

  • SKU: 9326630

Rixson 9-326-630 OverHead Surface Mounted Heavy Duty Stop, Hold Open, Satin Stainless Steel

  • SKU: 9326630
Sale price$459.62/ea
In Stock
In Stock

Rixson 9-326-630 OverHead Surface Mounted Heavy Duty Stop With Hold Open, Dr Width Use Butts and Pivots 33-1/16-38 In, For 1 3/4 Tk Dr, 110 Deg Max, Non Handed, US32D-630 Satin Stainless Steel Finish

Rixson Checkmate 9-326 Heavy-Duty Surface Mounted Hold Open


  • Doors are single acting
  • Non-handed
  • Slide track design
  • Recommended for high traffic, heavy abuse installations
  • Heavy shock absorber spring provides 5-7 ° compression before the dead stop
  • LS option omits spring for special application
  • On/off knob
  • Complete screw packet with thru-bolts for the door, wood, and machine screws for frame
  • Torx ® screws optional for security applications
  • Standard architectural finishes
  • 110 ° maximum opening
  • 1-3/4" minimum door thickness
  • 1-3/16" square channel
  • Durable slider cam and shock block
  • For flush mounting on the push side of the door use angle jamb bracket adapter 5458 LH 5459RH
  • Rixson 9-326 Overhead Door Stops

Specifications

Application: Surface Mount - Interior or Exterior - High Traffic Doors
Butts Offset Pivots: 33-1/16 - 38
Center Hung Pivots: 36-1/16 - 41
Weight: 4.5 lbs
Warranty: 2 Years Limited Warranty
Manufacturer: Rixson

Certifications:

ANSI: 156.8, Grade 1 and 2, C02511
UL: UL/ULC Listed
