• Exterior or Interior Doors

• Lead-Lined, Heavy, High Traffic Doors

• Weight to 800 lbs.

• Door Width up to 4'0" (1219mm)

• Handed

Product Description & Features

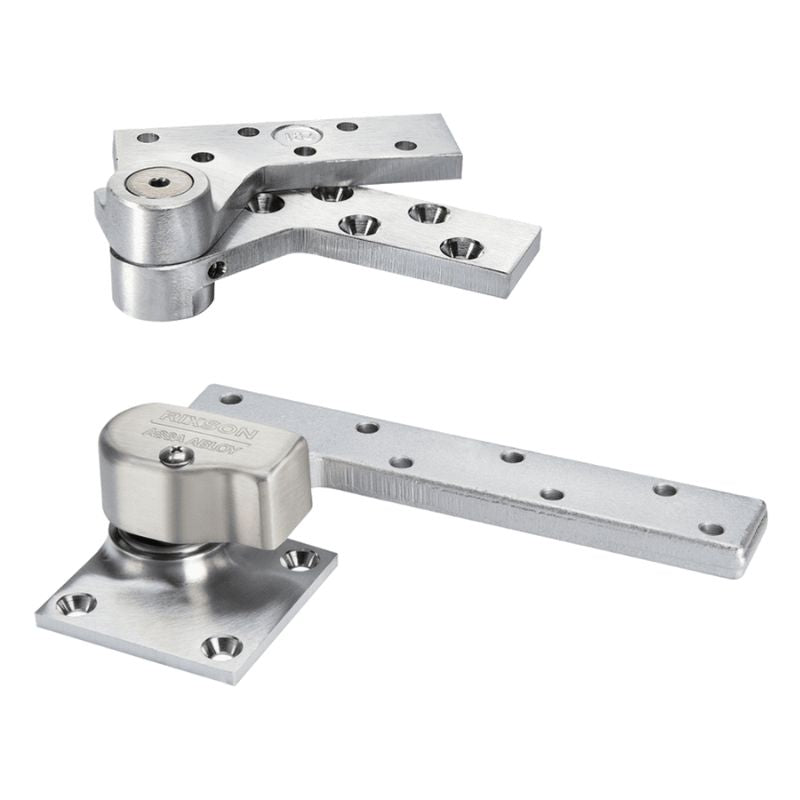

• L180 top pivot included

• ML19 intermediate pivot required (sold separately)

• 3/4" (19mm) offset (measured from centerline of pivot to face of door)

• Door edges must be beveled 1/8" in 2"

• Bottom pivot mounts directly to floor

• Doors with lead lining under the skin should also use this product.

• Screw holes in top pivot and bottom arm spaced to straddle lead lining in the middle of the door
• Doors will swing 180°, trim permitting

• Non-ferrous base material

• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot
• Available to accommodate lead in door thicknesses 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), or 3" (76mm) – specify when ordering

• Furnished with wood and machine screws
