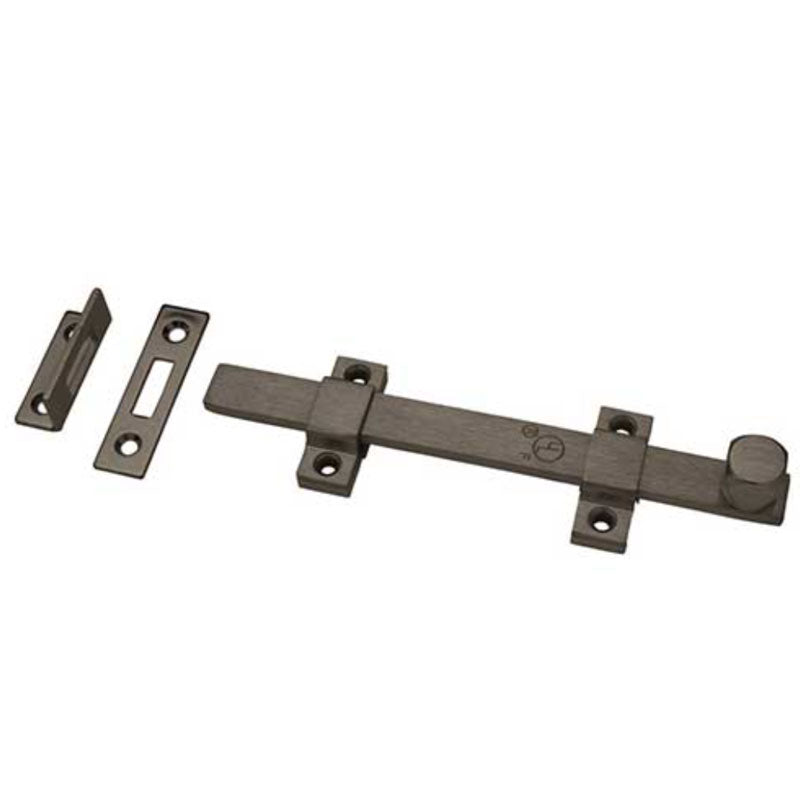

The Rockwood 580-12-US10BE is a 12" Surface Bolt and comes in 613E Dark Oxidized Satin Bronze Oil Rubbed Finish. The 580-12 Is a Surface Mounted Commercial Slide Bolt Which Is UL listed for use on the inactive leaf of a pair of 3-hour labeled fire doors. Includes a universal top strike and a mortise bottom strike.
Size: Bolt Throw: 1 1/8"
Bolt Material: 1/4" x 3/4"
Bolt Length: 8"
Fasteners: 8 ea. #10 x 1 1/4" Flat Head Sheet Metal Screws, 8 ea. #10-24 x 1" Flat Head Machine Screws
ANSI A156.16: L04161
| Manufacturer | Rockwood |
| SKU | 580-12 US10BE |
| Installation | Commercial |
| Base Material | Steel, Stainless Steel |
| Finish | 613E/US10BE |
| Finish Description | Dark Oxidized Satin Bronze Oil Rubbed |
| Finish Family | Dark Bronze |
