Description

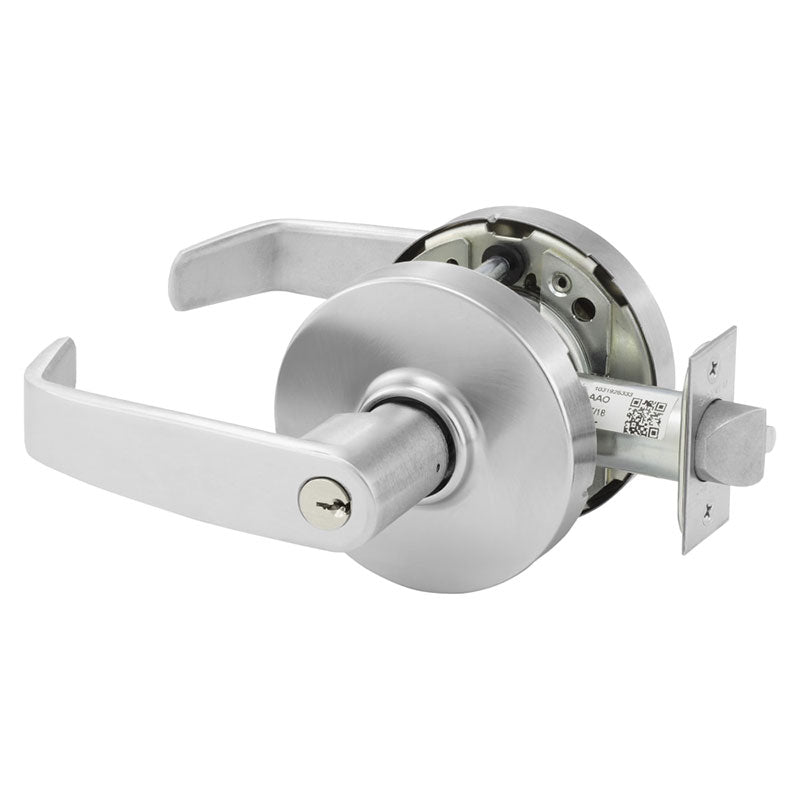

The Sargent 10XG04-LL Storeroom function lockset has an L Rose, an L Lever, a 2-3/4" Backset, a 4-7/8" Strike, and is Grade 1 Heavy Duty. The Sargent 10XG04-LL is available in a Conventional 6 Pin Cylinder, LA Keyway, Keyed Differently, with 2 Keys Standard.
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Features
- Compatible with several security key systems (Degree, Signature, KESO, etc.)
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
- Innovative push/turn button design prevents damage from door stops and walls
- 26 mechanical functions offered
- Available in 14 finishes with multiple lever designs
- Optional Microshield ® antimicrobial coating available
- Lockbody design supports all cylinder formats - from fixed to interchangeable core
- Provides maximum resistance to vandalism and other malicious attacks
- Certified above & beyond testing to withstand high volume traffic
- Complements the look of any design style
- Minimizes inventory stocking requirements
- Simplifies installation in new and retrofit applications
- Integrates with new or existing facility key systems
Product Specs
Manufacturer | Sargent |
SKU | 10XG04-LL |
Grade | Grade 1 |
Installation | Commercial |
Origin | United States |
Unit of Measure | Each |
Base Material | Bronze |
UL Listing Type | ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
ANSI Number | F86 |
Limited Warranty | 10 Year Limited Warranty |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
Technical Specs
Function | 04 Storeroom |
Function Family | Storeroom |
ANSI Function |
F86- Storeroom |
Rose/Escutcheon Design |
L Rose |
Rose/Escutcheon Dimensions | 3-1/2" |
Lever | L Lever |
Handing | Non-handed |
Door Thickness | 1-3/4" to 2" |
Std. Latch Number | 10-2000 |
Std. Latch Type | Deadlatch |
Std. Latch Backset Dim | 2-3/4" |
Latch Bore Diameter | 1" |
Lock Face Size | 1-1/8" x 2-1/4" |
Bolt Projection | 1/2" |
Bore Hole Diameter | 2-1/8" |
Std. Strike Number | 808 |
Std. Strike Type | ANSI Curved Lip Strike |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-1/4" |
Screws | Wood/Machine Screws |
Product Type | Cylindrical Lock |
