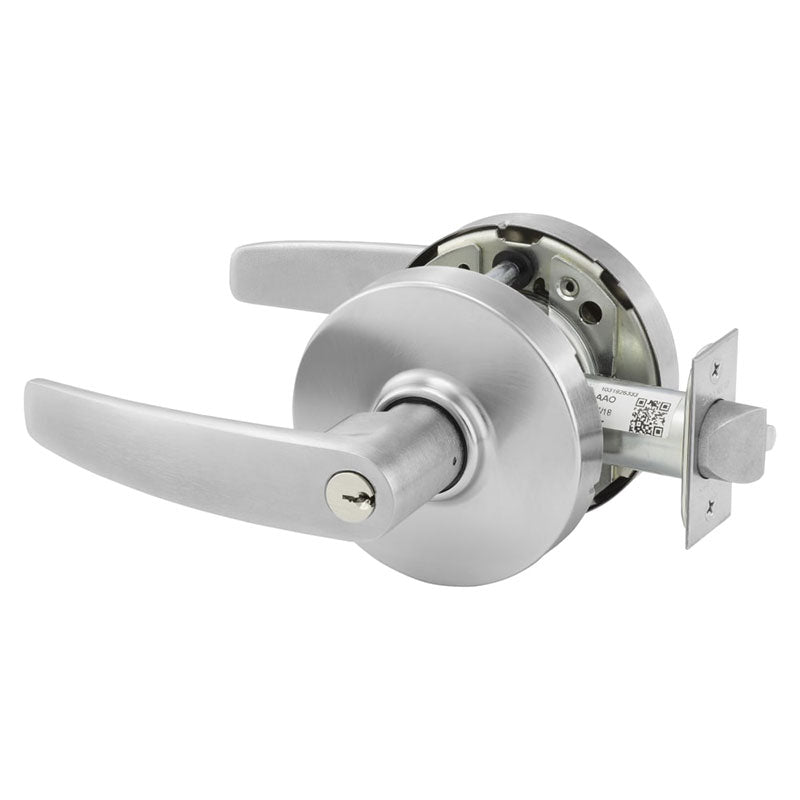

Sargent 10XG44-LB Cylindrical Service Station Function Lever Lockset, LA Keyway, L Rose, B Lever, Grade 1

  • SKU: 10XG44LBUS26DKD

Sargent 10XG44-LB Cylindrical Service Station Function Lever Lockset, LA Keyway, L Rose, B Lever, Grade 1

  • SKU: 10XG44LBUS26DKD
Sale price$462.15/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time
Finish: US26D-626 Satin Chrome
Visa Mastercard American Express Discover Shop Pay Apple Pay

The Sargent 10XG44-LB Service Station function lockset has an L Rose, a B Lever, a 2-3/4" Backset, a 4-7/8" Strike, and is Grade 1 Heavy Duty. The Sargent 10XG44-LB is available in a  Conventional 6-pin cylinder, LA Keyway, Keyed Differently, with 2 Keys Standard.

10X-Line Bored Lever Locks

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.

Sargent 10XG44 Function

Features

  • Compatible with several security key systems (Degree, Signature, KESO, etc.)
  • Prevents entry and maintains egresss against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
  • Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict Service Station
  • Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
  • Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
  • Innovative push/turn button design prevents damage from door stops and walls
  • 26 mechanical functions offered
  • Available in 14 finishes with multiple lever designs
  • Optional Microshield ® antimicrobial coating available
  • Lockbody design supports all cylinder formats - from fixed to interchangeable core
  • Provides maximum resistance to vandalism and other malicious attacks
  • Certified above & beyond testing to withstand high volume traffic
  • Complements the look of any design style
  • Minimizes inventory stocking requirements
  • Simplifies installation in new and retrofit applications
  • Integrates with new or existing facility key systems



Manufacturer Sargent
SKU 10XG44-LB
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Bronze
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
ANSI Number F92
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No

Function 44 Service Station
Function Family Service Station
ANSI Function F92 - Service Station
Rose/Escutcheon Design L Rose
Rose/Escutcheon Dimensions 3-1/2"
Lever  B Lever
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 10-2000
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 808
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
