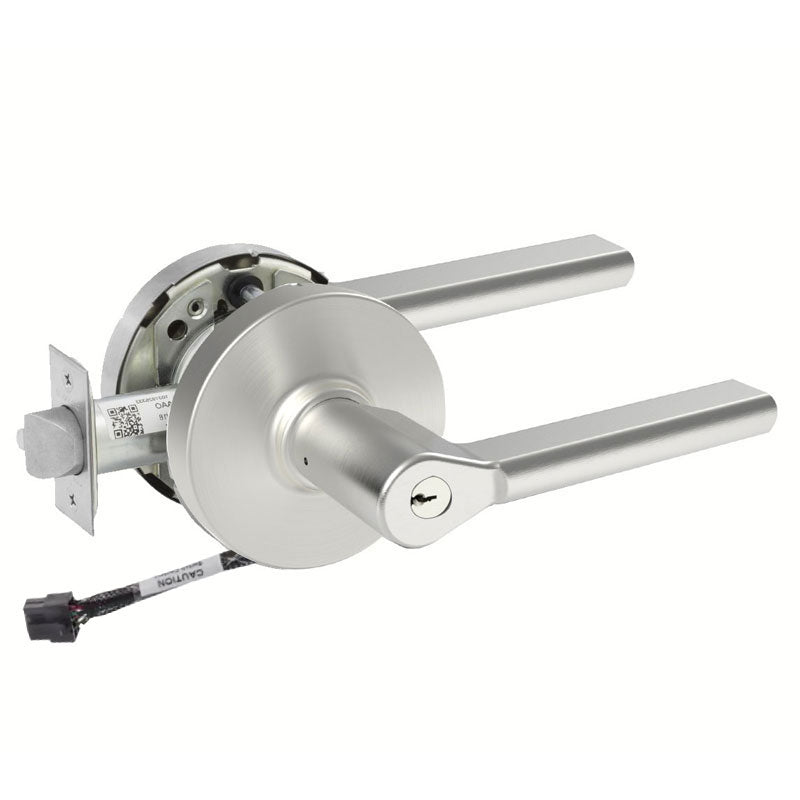

Sargent 10XG71-LMD-US26D Fail Safe Cylindrical Electromechanical Lock
Sargent 10XG71-LMD-US26D Fail Safe Cylindrical Electromechanical Lock
Sargent 10XG71-LMD-BSP Fail Safe Cylindrical Electromechanical Lock
Sargent 10XG71-LMD-US10B Fail Safe Cylindrical Electromechanical Lock
All SARGENT Products

Sargent 10XG71-LMD Fail Secure Cylindrical Electromechanical Lock, LA Keyway, L Rose, MB Lever, Grade 1

  • SKU: 10XG71LMDUS26D
  • ✓
    Available (2‑3 Weeks)
    2-3 Weeks Lead Time
Your Price
$697.53/ea
Finish: US26D Satin Chrome (626)

Sargent 10XG71-LMD Cylindrical Electromechanical Lever Lockset, Fail Secure, LA Keyway Keyed Random, [2] Keys, Feild Reversible, L Rose, MD Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1

The Sargent 10XG71-LMD Cylindrical Electromechanical Lock features a Fail Secure - Power Off Locks Lever Function, where the power off Locks the outside lever.  The 10XG71-LMD comes with a standard LA Keyway Cylinder, Keyed Randomly, 2 change keys per lock, an L Rose,MD Lever, 2-3/4" backset, 4-7/8" strike, and comes in 12VDC or 24VDC voltage options. Sargent 10XG71-LMD Locks are field-selectable, fail-safe, and fail-secure.

Sargent 10XG71 Function

Key Features:

  • 71 Function - Fail Secure
  • 2 3/4" Backset
  • 4 7/8" Strike
  • ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times
  • UL-cUL listed for 3 hour fire doors and windstorm applications
Manufacturer Sargent
SKU 10XG71 LMD
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
UL Listing Type ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty 10 Year Limited Warranty
Fire Rated 3 Hours {A}
Burglar Rated No






Function 71 Electromechanical (Fail Secure)
Lever/Knob Design MD Lever
Rose/Escutcheon Design L Rose
Cylinder Type 6-Pin Cylinder
Num Pins 6
Hand Non-handed
Door Thickness 1-3/4" to 2"
Latch Number Oct-00
Latch Type Deadlatch
Latch Backset Dim 2-3/4"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Strike Number 808
Strike Type ANSI Curved Lip Strike
Strike Height 4-7/8"
Strike Width 1-1/4"
Screws Wood/Machine Screws
Operating Voltage 12 or 24 VAC/DC
Amp Draw 250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC
Product Type Electric Cylindrical Lock
