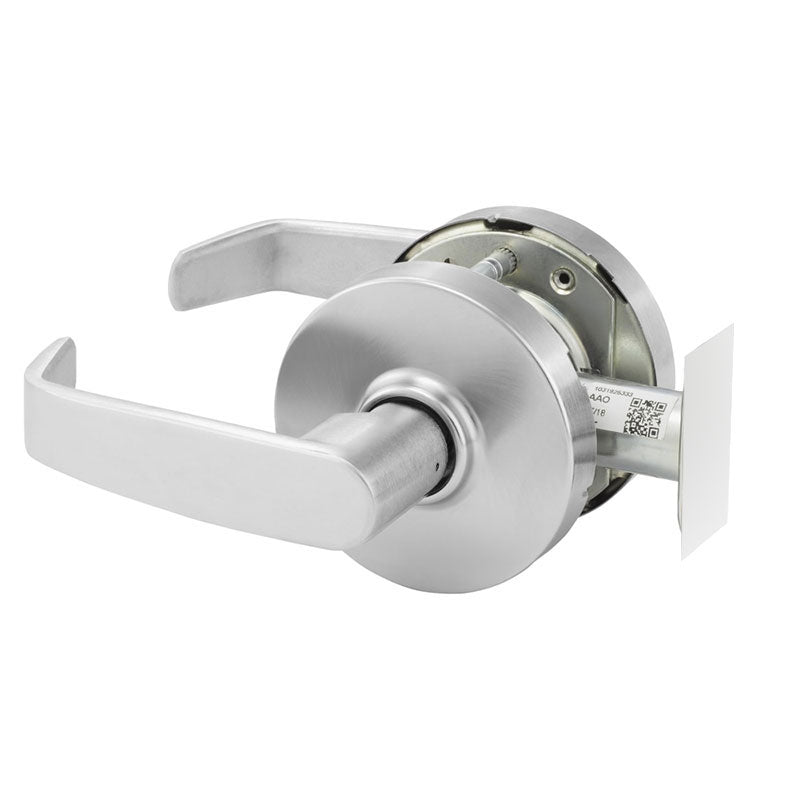

Sargent 10XU94-2-LL Double Dummy Lever Pulls, Mounted Back to Back With Dummy Latch Plate, L Rose, L Lever, Grade 1

The Sargent 10XU94-2-LL is part of Sargent's Grade 1 10 Line locks. The 10XU94-2 Double Lever Pull comes in a L Rose and L Lever Design. The Dummy 94-2 Trim Function is best used for applications that don't require an active locking or latching mechanism. Sargent 10XU94-2-LL is ideal For Use In Institutions, schools, Office Spaces, Healthcare Facilities, and Areas That Require A Grade 1 cylindrical lock. The Sargent 10XU94-2-LL is available in US26D Satin Chrome, US26 Polished Chrome, US10 Satin Bronze, US4 Satin Brass, US3 Polished Brass, and BSP Black Suede Powder Coat Finish.

10X-Line Bored Lever Locks

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.

Features

• Compatible with several security key systems (Degree, Signature, KESO, etc.)
• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
• Innovative push/turn button design prevents damage from door stops and walls
• 26 mechanical functions offered
• Available in 14 finishes with multiple lever designs
• Optional Microshield ® antimicrobial coating available
• Lockbody design supports all cylinder formats - from fixed to interchangeable core
• Provides maximum resistance to vandalism and other malicious attacks
• Certified above & beyond testing to withstand high volume traffic
• Complements the look of any design style
• Minimizes inventory stocking requirements
• Simplifies installation in new and retrofit applications
• Integrates with new or existing facility key systems
