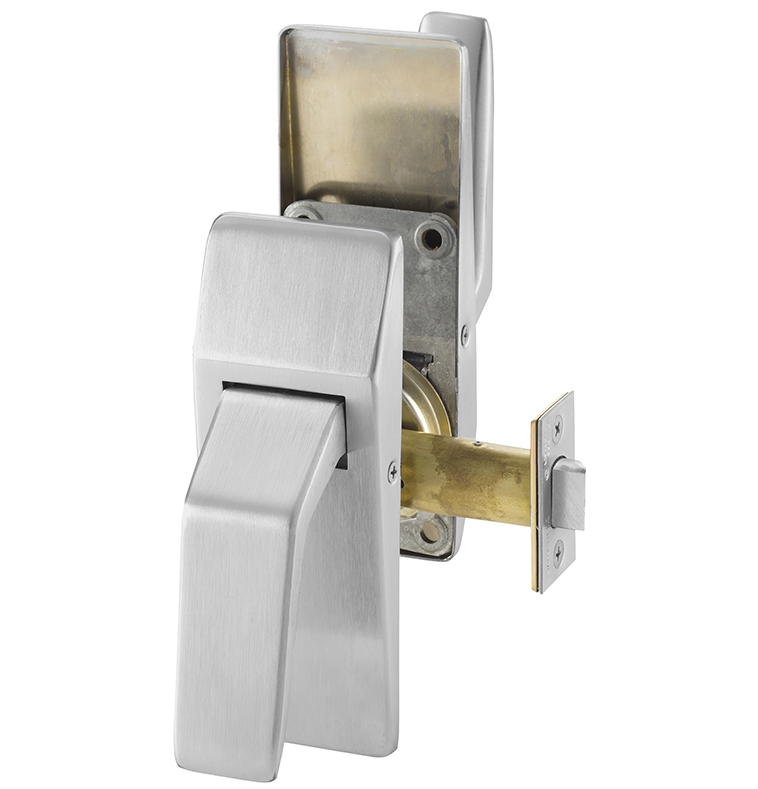

Sargent 28-115-US26D Hospital Latch for Push-Pull Doors, 5" Backset, 4 7/8" Strike, No Push/Pull Trim, One Pull Up, One Down, Satin Chrome Finish

Sargent 115-US26D Hospital Latches are designed for convenience and utility, the 114/115 hospital latches open with a gentle pull or slight push, making them ideal for hands-free operation.  The 115 push-pull latches with their low profile help eliminate any obstruction while passing through an opening. Slim tapered paddles and smartly styled escutcheons possess all the elements of tasteful, yet functional design. The chassis design makes this hospital latch constructed for both durability and ease of installation.

Sargent 115-US26D Hospital Latches Specifications

• For Doors - 1-3/4" (44mm) - 2-1/4" (57mm)
• Backset - 5" (127mm) standard, 7" (177mm) backset available
• Strike - 2-3/4" (70mm) ANSI A115.2 curved lip strike # 800
• Bolt - Brass, 1/2" (13mm) throw, anti-friction nylon insert
• Hand - Specify hand when ordering (RHR, RH, LHR or LH)
• 115- Push Paddle; 1-5/8" (41mm) x 4-1/2" (114mm); Projection from door 2-1/2" (64mm) Mounted up position ONLY
• 115- Pull Paddle Cast; 1-5/8" x 4-3/4"; Projection from door 2-15/16" Mounted down position ONLY

Sargent 115-US26D Hospital Latches Certifications
