Description

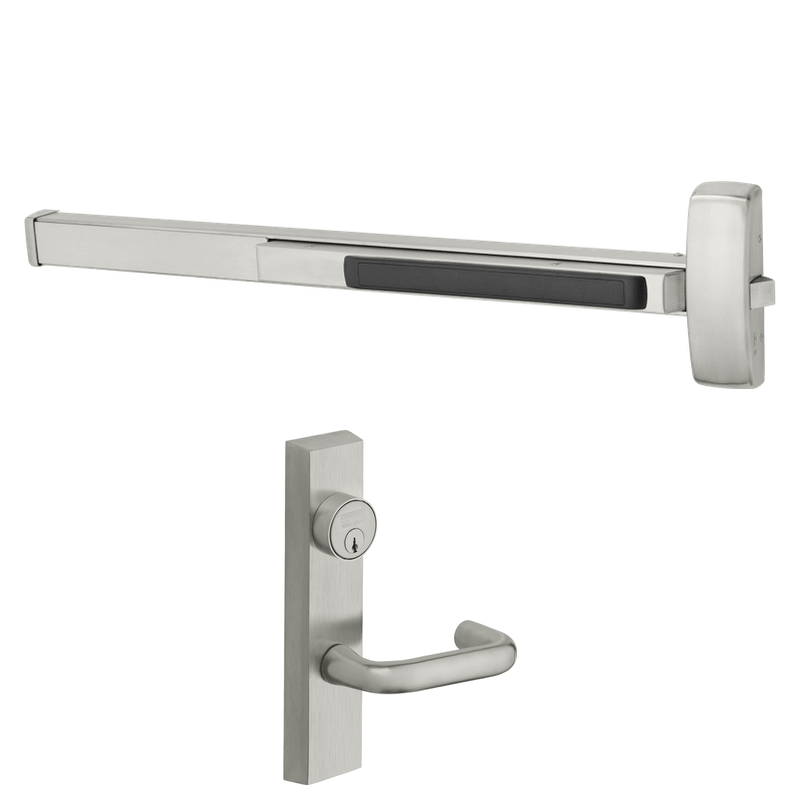

Sargent 12-55-8813-F-ETJ Fire Rated Rim Exit Device, Classroom Function, Request To Exit, ET Control, J Lever, 33"-36" Door Width, Less Dogging, Grade 1
The Sargent 12-55-8813-F-ETJ is a Grade 1 fire rated rim exit device built for classroom applications where secure, reliable egress is essential. Designed for doors measuring 33 to 36 inches wide, it pairs the 8800 series rim mechanism with ET trim and the J lever for comfortable, code-compliant operation. The classroom function (8813) allows outside access to be controlled by key while free egress is always maintained from the inside. An integrated Request to Exit (REX) switch supports access control integration, and the less dogging configuration keeps the device fire rated for use on labeled openings.
Features
- Grade 1 heavy-duty rim exit device suited for high-traffic commercial and institutional doors.
- Fire rated construction (F) for use on labeled fire door assemblies.
- Classroom function (8813) provides key-controlled outside access with continuous free egress.
- Built-in Request to Exit (REX) switch for integration with electronic access control systems.
- ET trim with the J lever offers a durable, ergonomic grip.
- Sized for 33 to 36 inch wide doors.
- Less dogging configuration preserves the fire rating by preventing the latch from being held retracted.
Functional Details
The classroom function allows the outside lever to be locked or unlocked by key, while the inside push bar always retracts the latch for immediate egress. The 55 prefix adds a Request to Exit switch that signals an access control system when egress occurs.
- Outside lever controlled by key to lock or unlock access.
- Inside device always allows free egress.
- Request to Exit switch monitors mechanical operation of the device.
Arm Type Details
The ETJ designation refers to the ET trim design fitted with the J style lever. The lever moves independently of the latching mechanism, retracting the latch only when the outside access is unlocked, while the push bar governs interior release.
Included Components
The device ships with the rim exit chassis, ET trim with J lever, and mounting hardware required for installation on a 33 to 36 inch wide door.
Product Specifications
| Manufacturer | Sargent |
|---|---|
| SKU | 12-55-8813-F-ETJ |
| Grade | ANSI/BHMA Grade 1 |
| Device Type | Rim Exit Device |
| Function | Classroom (8813) |
| Fire Rating | Fire Rated (F) |
| Trim / Lever | ET Trim, J Lever |
| Dogging | Less Dogging |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | Fire Exit Hardware |
| ANSI Number | ANSI/BHMA A156.3 |
| Limited Warranty | Yes |
Technical Specifications
| Door Width Range | 33 in. to 36 in. |
|---|---|
| Series | 8800 Series |
| Latchbolt Type | Deadlatching Pullman |
| Latchbolt Throw | 3/4 in. |
| Mounting | Rim (surface) mounted |
| Door Type | Single or double doors |
| Minimum Stile Width | Standard commercial stile |
| Request to Exit | Integrated REX switch (55 prefix) |
| Switch Rating | Low voltage monitoring |
| Handing | Non-handed chassis |
| Push Bar Travel | Standard touch bar actuation |
