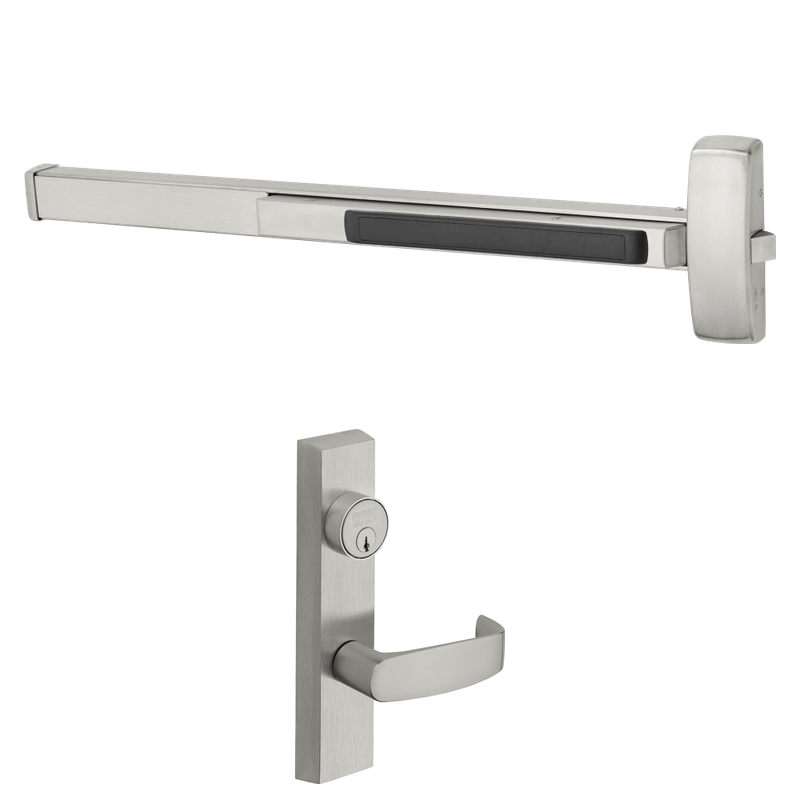

Sargent 12-55-8813-F-ETL Fire Rated Rim Exit Device, Classroom, For 33-36" Dr Widths, Request To Exit

The Sargent 12-55-8813-F-ETL is a fire rated rim exit device designed for classroom applications where secure access control and reliable egress are both required. Built to accommodate 33" to 36" door widths, this device pairs the dependable 8800 series rim mechanism with ETL trim and a Request to Exit (RX) switch for integration with access control and electronic monitoring systems. Fire rated construction makes it suitable for labeled openings, while the classroom function allows outside lever operation with key control. It's a solid choice for schools, healthcare facilities, and commercial buildings that demand durability, code compliance, and smart building integration.

Features

• Fire rated rim exit device suitable for labeled door openings.
• Sized for 33" to 36" door widths.
• Classroom (ETL) outside trim function for controlled entry with key access.
• Built-in Request to Exit (RX) switch for access control and monitoring integration.
• Heavy-duty 8800 series construction built for high-traffic commercial use.
• Grade 1 performance for long-term reliability.

Functional Details

The classroom function allows the outside lever to be locked or unlocked by key, while free egress is always available by pushing the touchpad from the inside. The integrated Request to Exit switch signals an access control system when the touchpad is depressed, enabling monitored egress and bypassing door alarms.

• Request to Exit (RX) switch monitors use of the exit device.
• Classroom function: outside lever controlled by key, inside always free for egress.
• Fire rated for use on labeled openings.

Arm Type Details

As a rim-type exit device, the mechanism mounts to the surface of the door and latches to a strike on the frame. This surface-mounted design simplifies installation and maintenance while providing dependable latching for fire rated applications.
