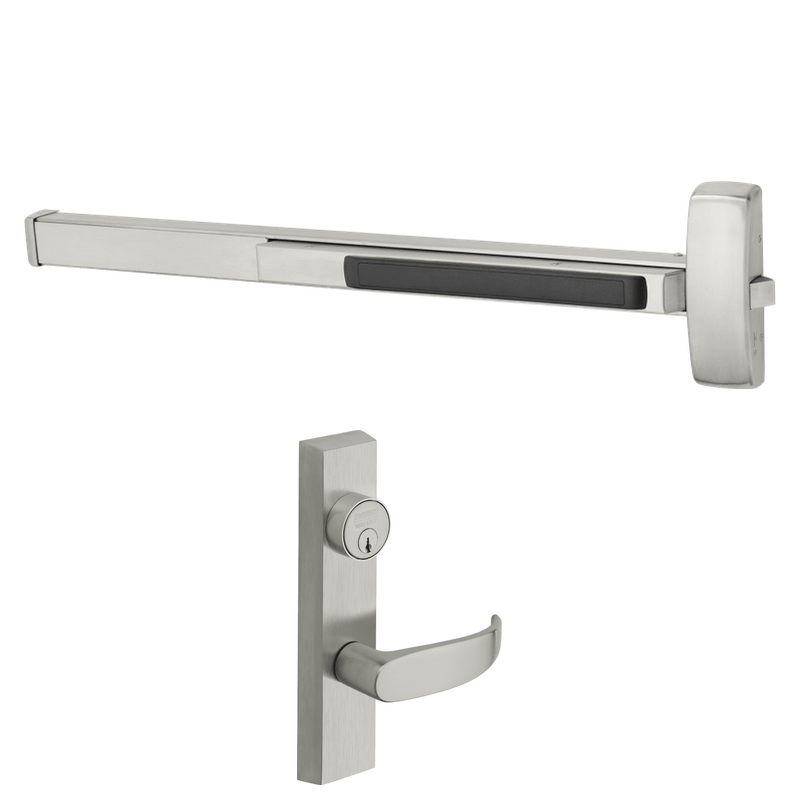

Sargent 12-55-8813-F-ETP Fire Rated Rim Exit Device, Classroom Function, Request To Exit, ET Control, P Lever, 33"-36" Door Width, Less Dogging, Grade 1

The Sargent 12-55-8813-F-ETP is a Grade 1 fire rated rim exit device built for demanding commercial and institutional openings. Configured for classroom function with an ET trim and the P lever design, it allows secure egress while giving authorized users key-controlled entry from the outside. The 55 prefix adds a Request to Exit (RX) switch, making this device ideal for access control and monitored door applications. Sized for doors ranging from 33 to 36 inches wide, it ships less dogging to meet fire-rated requirements. With Sargent's heavy-duty construction and proven reliability, this device delivers dependable performance in high-traffic environments.

Features

  • Grade 1 rim exit device engineered for heavy-duty commercial and institutional use.
  • Fire rated (F) construction suitable for labeled door openings.
  • Classroom function (8813) allows outside key access while permitting free egress at all times.
  • Request to Exit (RX) switch built in via the 55 prefix for access control integration.
  • ET trim with the P lever provides a clean, durable operating experience.
  • Designed to fit doors from 33 to 36 inches in width.
  • Supplied less dogging to maintain compliance on fire-rated assemblies.

Functional Details

The classroom function (8813) keeps the door latched and secure from the exterior, requiring a key to retract the latch and gain entry. The interior lever and push rail remain active for immediate, free egress at any time, supporting life safety requirements. The integrated Request to Exit switch signals an access control or monitoring system whenever the push rail is actuated.

  • Key outside locks or unlocks outside lever.
  • Latchbolt retracted by lever when unlocked.
  • Latchbolt retracted by key when locked.
  • Inside lever always free for immediate egress.

Arm Type Details

This device uses the ET exterior trim with the P lever design. The ET control integrates a keyed cylinder that governs the outside lever, allowing the lever to retract the latch when unlocked and requiring key entry when locked.

Included Components

The device ships with the rim exit chassis, ET trim with P lever, mounting hardware, and the integrated Request to Exit switch. A mortise cylinder is typically required and ordered separately.

Manufacturer Sargent
SKU 12-55-8813-F-ETP
Grade ANSI/BHMA Grade 1
Device Type Rim Exit Device
Function Classroom (8813)
Fire Rating Fire Rated (F)
UL Listing Type UL/cUL Listed for Fire Exit Hardware
ANSI Number ANSI/BHMA A156.3
Origin Made in USA
Unit of Measure Each
Limited Warranty Sargent Limited Warranty
Door Width Range 33 in. to 36 in.
Device Series 80 Series
Prefix 55 (Request to Exit)
Trim Type ET with P Lever
Dogging Less Dogging
Latchbolt Throw 3/4 in.
Minimum Stile Width Fits standard 33 to 36 in. doors
Switch Type Request to Exit (RX) monitoring
Mounting Surface mounted rim
Cylinder Mortise cylinder required (ordered separately)
