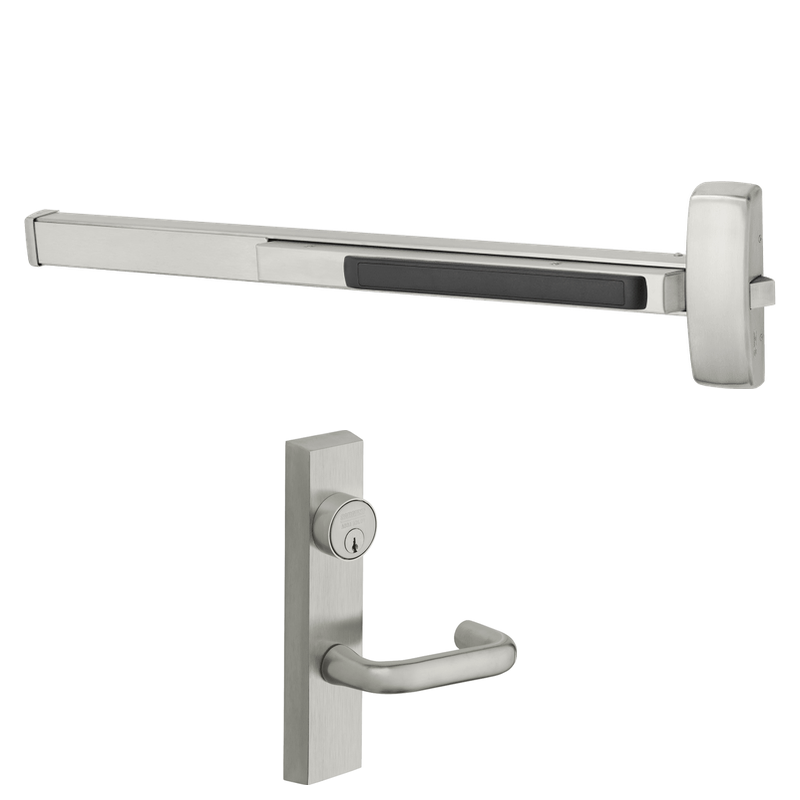

Sargent 12-55-8813-G-ETJ Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Less Dogging

  • SKU: 12558813GETJUS32DLHR
Sargent 12-55-8813-G-ETJ Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Less Dogging, US32D-630 Satin Stainless Steel
Sargent 12-55-8813-G-ETJ Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Less Dogging, US32D-630 Satin Stainless Steel
Sargent 12-55-8813-G-ETJ Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Less Dogging, US10B-613 Oil Rubbed Bronze
Sargent 12-55-8813-G-ETJ Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Less Dogging, US10BE-613E Dark Oxidized Bronze
Sargent 12-55-8813-G-ETJ Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Less Dogging, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 12-55-8813-G-ETJ Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Less Dogging

  • SKU: 12558813GETJUS32DLHR
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$2,013.77/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Sargent 12-55-8813-G-ETJ Fire Rated Rim Exit Device, Classroom Function, Request To Exit, ET Control, J Lever, 43"-48" Door Width, Less Dogging, Grade 1

The Sargent 12-55-8813-G-ETJ is a Grade 1 fire rated rim exit device built for high-traffic commercial openings up to 48 inches wide. Configured in classroom (ET) function with the J lever trim, it allows secure keyed control of the outside lever while always permitting free egress from the inside. An integrated request-to-exit (RX) switch monitors the device for access control and alarm integration. As a fire rated unit, it is supplied less dogging to maintain positive latching required for fire-rated door assemblies, making it a dependable choice for schools, offices, and institutional facilities that demand both life safety and controlled access.

Features

  • Grade 1 rim exit device engineered for demanding commercial and institutional use.
  • Fire rated construction provides positive latching for fire-rated door assemblies.
  • Classroom (ET) function allows keyed control of the outside lever with constant free egress.
  • Includes the J lever design (ETJ trim) for a clean, ergonomic feel.
  • Built-in request-to-exit (RX) switch for access control and monitoring.
  • Sized for door widths from 43 to 48 inches.
  • Supplied less dogging as required for fire-rated applications.

Functional Details

The classroom function allows the outside lever to be locked or unlocked by key, while the inside push bar always retracts the latch for immediate egress. The RX option adds electronic signaling to report the status of the device.

  • Outside lever locked or unlocked by key.
  • Latchbolt retracted by lever when unlocked or by key.
  • Free egress at all times from the inside push bar.
  • Request-to-exit (RX) switch signals device operation.

Arm Type Details

The ETJ trim pairs the ET classroom escutcheon with the J lever, providing a durable, cast lever that returns to a horizontal rest position and resists sagging over the life of the installation.

Included Components

This device ships as a complete rim exit assembly with the ET escutcheon trim, J lever, mounting hardware, and the integrated request-to-exit switch.

Manufacturer Sargent
SKU 12-55-8813-G-ETJ
Device Type Fire Rated Rim Exit Device
Function Classroom (ET)
Trim ETJ – J Lever
Grade ANSI/BHMA Grade 1
Dogging Less Dogging
Origin USA
Unit of Measure Each
UL Listing Type UL Fire Rated (3-hour)
ANSI Number ANSI/BHMA A156.3
BAA Qualified Yes
Limited Warranty Manufacturer limited warranty
Series 80 Series
Device Family 8800 Rim
Door Width Range 43 in – 48 in
Mounting Rim (surface) mounted
Latchbolt Deadlocking, 3/4 in throw
Switch Option Request-to-Exit (RX)
Door Type Hollow metal, wood, or aluminum
Handing Non-handed
Fire Rating Fire rated opening compatible
Strike Rim strike included
