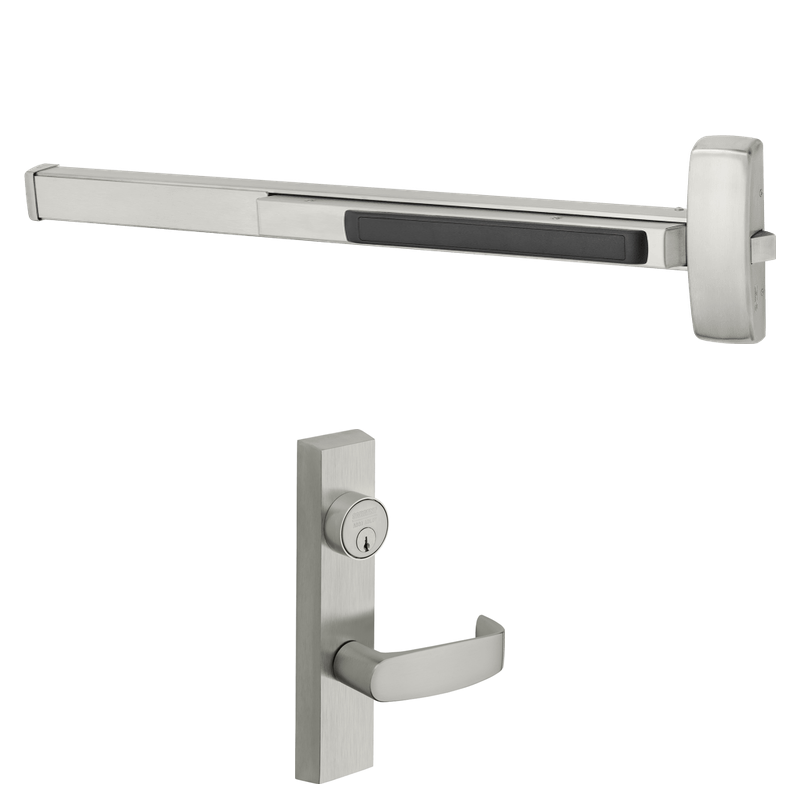

Sargent 12-55-8813-G-ETL Fire Rated Rim Exit Device, Classroom, For 43-48" Dr Widths, Request To Exit

The Sargent 12-55-8813-G-ETL is a fire rated rim exit device engineered for classroom applications on doors measuring 43 to 48 inches wide. Built to deliver reliable egress on fire-rated openings, this device pairs the dependable 8800 series platform with a classroom lever trim and a Request to Exit (RX) switch for integration with access control and monitoring systems. The G (Gull Wing) design offers a clean, durable grip, while the UL fire label makes it suitable for labeled wood and hollow metal doors. It's a solid choice for schools, offices, and institutional facilities demanding secure, code-compliant exit hardware.

Features

• Fire rated rim exit device suitable for labeled single and double door openings.
• Sized for doors 43 to 48 inches wide.
• Classroom (8813) function provides controlled outside access with keyed trim.
• Built-in Request to Exit (RX) switch signals when the device is operated from the inside.
• G (Gull Wing) lever trim offers a comfortable, durable grip.
• Grade 1 construction built for high-traffic commercial use.

Functional Details

The 8813 classroom function allows free egress at all times through the push bar, while the outside lever is controlled by key. A key retracts the latch for momentary entry, and the outside lever can be locked or unlocked as needed for classroom security.

• Latchbolt operated by lever from outside unless locked by key outside.
• Key outside locks or unlocks lever.
• Exit device always operable for free egress.

Arm Type Details

This unit features the G (Gull Wing) end cap and lever design, which combines a modern aesthetic with rugged construction for consistent performance in demanding environments.

Included Components

Device ships with the rim exit chassis, G lever classroom trim, Request to Exit switch, mounting hardware, and installation instructions.
