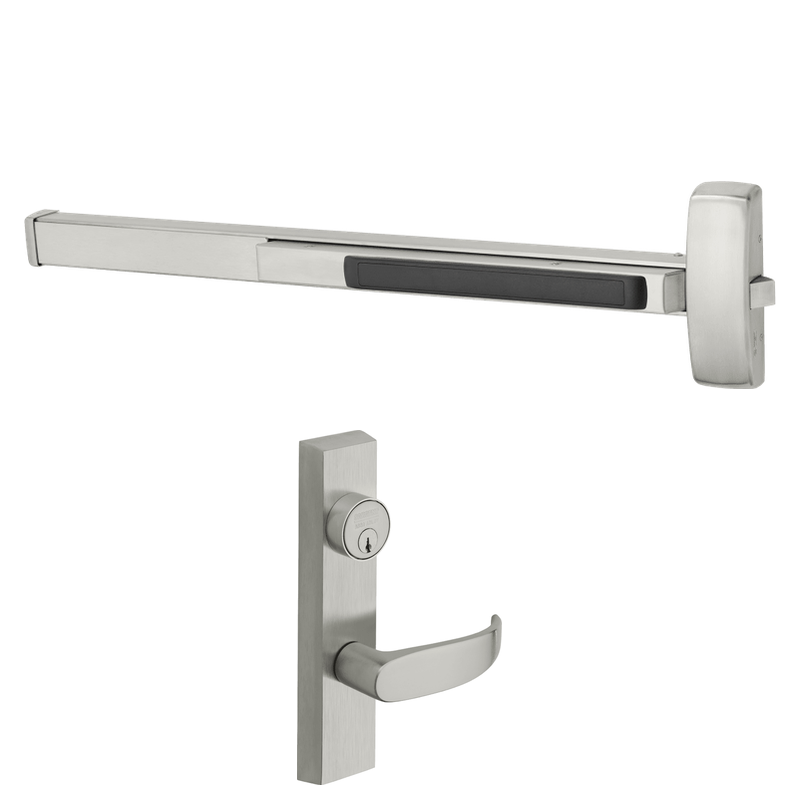

Sargent 12-55-8813-G-ETP Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 43-48 Inch Width Door, Less Dogging

  • SKU: 12558813GETPUS32DLHR
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$2,013.77/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Sargent 12-55-8813-G-ETP Fire Rated Rim Exit Device, Classroom Function, Request To Exit, ET Control, P Lever, 43"-48" Door Width, Less Dogging, Grade 1

The Sargent 12-55-8813-G-ETP is a Grade 1 fire rated rim exit device engineered for high-traffic classroom openings that demand both security and reliable egress. Configured with the ET trim and P lever, it delivers classroom function, meaning the outside lever can be locked or unlocked by key while free egress is always available from the inside. The built-in request-to-exit (REX) switch integrates seamlessly with access control systems to monitor and signal when the device is used. Sized for doors measuring 43 to 48 inches wide and supplied less dogging for fire rated applications, this device combines durable construction with dependable life-safety performance.

Features

  • Fire rated rim exit device suitable for labeled door assemblies requiring no mechanical dogging.
  • Classroom function allows the outside lever to be key-locked or unlocked while interior egress stays free at all times.
  • Integrated request-to-exit (REX) switch communicates egress activity to access control and monitoring systems.
  • ET trim paired with the P lever provides a smooth, ADA-friendly operating experience.
  • Sized to fit door widths from 43 to 48 inches.
  • Grade 1 rated for the highest level of durability in commercial and institutional settings.

Functional Details

The 55 classroom function operates so that the exit device remains locked or unlocked on the exterior via key control, while the push rail inside always retracts the latch to permit free egress. The 12 prefix adds an electrified request-to-exit signal switch that indicates when the device has been used.

  • Key locks or unlocks outside lever.
  • Latchbolt operated by lever unless outside lever is locked by key.
  • Inside lever or push bar always free for immediate exit.

Arm Type Details

This unit uses the ET lever trim style with the P lever design. The ET trim provides key-controlled operation of the outside lever, engaging or disengaging the latch depending on whether the function is locked, while the contoured P lever offers comfortable, accessible grip for everyday use.

Included Components

The device ships with the rim exit chassis, ET control trim, P lever, integrated request-to-exit switch, and mounting hardware for installation on 43 to 48 inch wide doors.

Manufacturer Sargent
SKU 12-55-8813-G-ETP
Grade ANSI/BHMA Grade 1
Device Type Fire Rated Rim Exit Device
Function Classroom
Trim ET Control with P Lever
Dogging Less Dogging (Fire Rated)
Origin Made in USA
Unit of Measure Each
UL Listing Type UL/cUL Listed for Fire Doors
ANSI Number ANSI/BHMA A156.3
BAA Qualified Yes
Limited Warranty Limited Lifetime Warranty
Device Series 8800 Series
Door Width Range 43 in. to 48 in.
Latchbolt Type Deadlocking Pullman Latch
Latchbolt Throw 3/4 in.
Mounting Rim (Surface Mounted)
Door Type Single or Double Doors
Door Thickness 1-3/4 in. standard
Strike Included Rim Strike
Switch Type Request-to-Exit (REX) Signal Switch
Fire Rating Up to 3 Hours (A Label)
Cylinder Mortise Cylinder (Order Separately)
