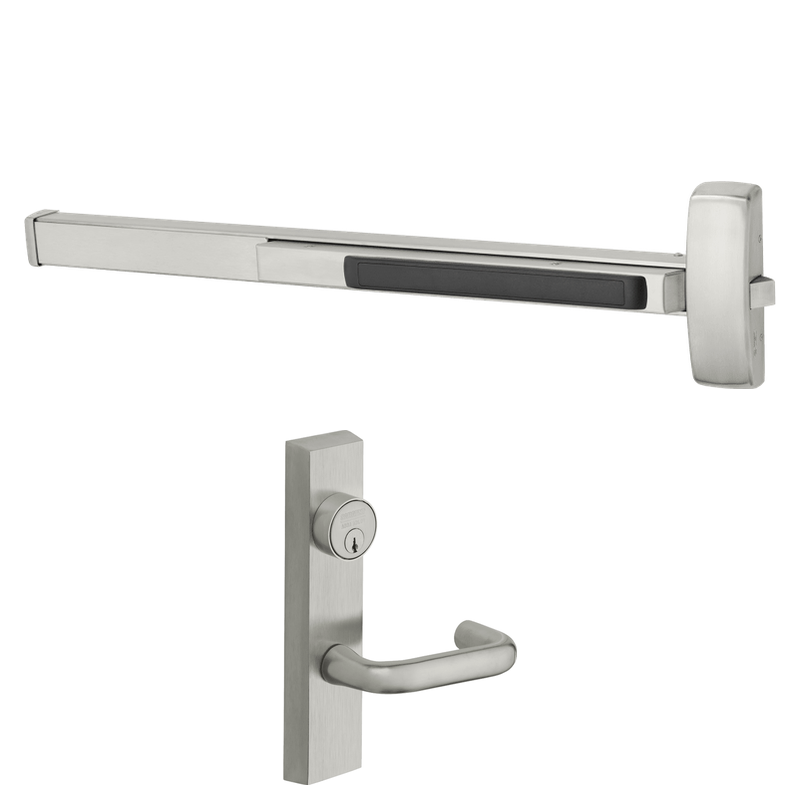

Sargent 12-55-8813-J-ETJ Fire Rated Rim Exit Device, Classroom Function, Request To Exit, ET Control, J Lever, 37"-42" Door Width, Less Dogging, Grade 1

The Sargent 12-55-8813-J-ETJ is a Grade 1 fire rated rim exit device built for demanding commercial and institutional openings. Designed to fit doors between 37 and 42 inches wide, it combines classroom function with ET trim and the J lever design for reliable daily use. The integrated request-to-exit (RX) switch monitors exit activity, making this device well suited for access-controlled and monitored environments. As a fire rated device, it is supplied less dogging to maintain proper latching under fire code requirements. With its durable construction and ANSI/BHMA certification, it delivers dependable egress and security for schools, offices, and other high-traffic facilities.

Features

• Grade 1 rim exit device rated for fire door assemblies.
• Classroom function allows the outside lever to be locked or unlocked by key while always permitting free egress.
• Fits doors ranging from 37 to 42 inches in width.
• Built-in request-to-exit (RX) switch for monitoring and access control integration.
• ET escutcheon trim with the J lever for a clean, durable appearance.
• Supplied less dogging to comply with fire rating requirements.
• Rugged construction suited for high-use commercial openings.

Functional Details

The classroom function (8813) allows the outside lever to be locked and unlocked by key, while the inside push bar always retracts the latch for free egress at all times. The request-to-exit feature signals when the device has been activated from the inside.

• Outside lever locked or unlocked by key.
• Key outside controls locking and unlocking of outside lever.
• Latchbolt retracted by lever unless locked by key.
• Always free egress from inside by pushing the touchbar.

Arm Type Details

This device uses the ET exit trim with the J lever design. The ET trim provides a sculptured escutcheon that houses the lever and cylinder, offering a sturdy grip and contemporary styling suited to modern commercial interiors.

Included Components

The device ships as a complete rim exit assembly including the push bar mechanism, ET escutcheon trim with J lever, mounting hardware, and integrated request-to-exit switch. A cylinder may be required separately depending on the application.
