All Sargent Products

Sargent 12-55-8813-J-ETP Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Less Dogging

  • SKU: 12558813JETPUS32DLHR
Sargent 12-55-8813-J-ETP Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Less Dogging, US32D-630 Satin Stainless Steel
Sargent 12-55-8813-J-ETP Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Less Dogging, US32D-630 Satin Stainless Steel
Sargent 12-55-8813-J-ETP Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Less Dogging, US10B-613 Oil Rubbed Bronze
Sargent 12-55-8813-J-ETP Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Less Dogging, US10BE-613E Dark Oxidized Bronze
Sargent 12-55-8813-J-ETP Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Less Dogging, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 12-55-8813-J-ETP Fire Rated Rim Exit Device, Classroom Function, Request To Exit, For 37-42 Inch Width Door, Less Dogging

  • SKU: 12558813JETPUS32DLHR
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$2,013.77/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

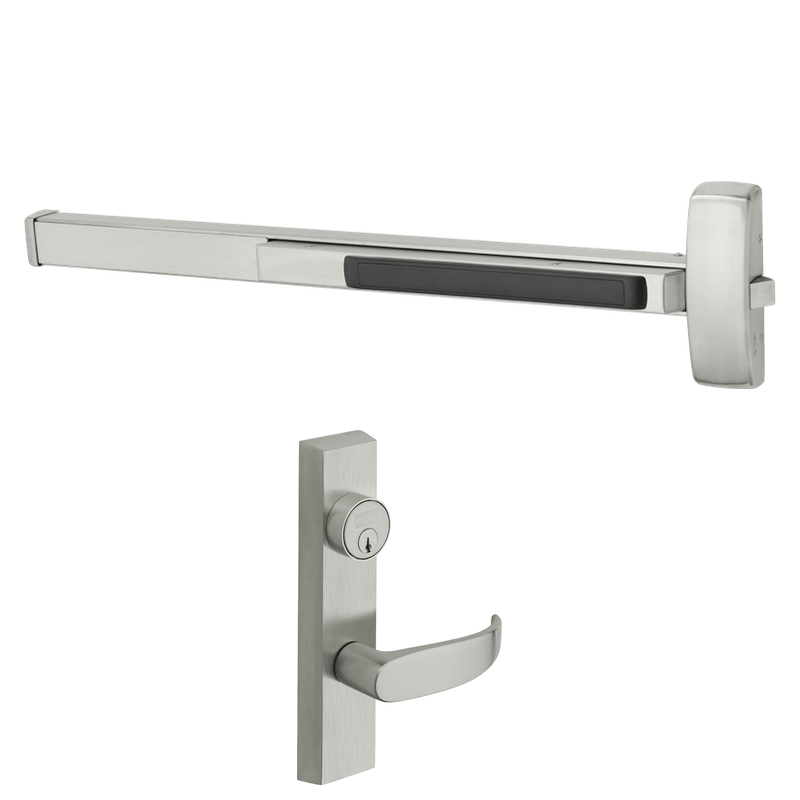

Sargent 12-55-8813-J-ETP Fire Rated Rim Exit Device, Classroom Function, Request To Exit, ET Control, P Lever, 37"-42" Door Width, Less Dogging, Grade 1

The Sargent 12-55-8813-J-ETP is a Grade 1 fire rated rim exit device engineered for secure, high-traffic openings requiring classroom-function control and built-in Request to Exit monitoring. Designed for door widths from 37 to 42 inches, it pairs reliable panic egress with the ET escutcheon trim and the P lever for everyday access control. The 8800 Series platform delivers dependable performance in commercial, educational, and institutional settings, while the integrated request-to-exit switch supports access control and alarm integration. As a fire rated device, it comes less dogging to maintain code compliance, making it a durable, long-term choice for demanding applications.

Features

  • Grade 1 rim exit device built for heavy commercial use and long-term reliability.
  • Fire rated construction for use on labeled fire door assemblies.
  • Classroom function controlled by key for secure access management.
  • Built-in Request to Exit (RX) switch for access control and monitoring integration.
  • ET escutcheon trim with the P lever design for comfortable, ADA-friendly operation.
  • Sized to fit door widths from 37 to 42 inches.
  • Less dogging to meet fire door code requirements.

Functional Details

The classroom function allows the outside lever to be locked or unlocked using a key, while free egress is always available from the inside by pushing the touch bar. The integrated Request to Exit switch signals an access control system when the device is operated.

  • Outside trim controlled by key.
  • Exit always available via the push bar.
  • Request to Exit (RX) switch monitors device operation.

Included Components

The device ships with the exit device chassis, ET escutcheon trim with P lever, and the request-to-exit switch assembly for connection to access control or monitoring systems.

Manufacturer Sargent
SKU 12-55-8813-J-ETP
Series 8800 Series
Grade ANSI/BHMA Grade 1
Function Classroom (8813)
Device Type Rim Exit Device
Fire Rating Fire Rated
Dogging Less Dogging
Trim ET Escutcheon, P Lever
Origin United States
Unit of Measure Each
UL Listing Type UL Listed for Fire
Door Width Range 37 in. to 42 in.
Device Function Number 8813
Trim Designation ETP
Request to Exit Option 55 (RX)
Mounting Rim (surface mounted)
Latchbolt Throw 3/4 in.
Minimum Stile Standard commercial stile widths
Handing Non-handed
Door Thickness 1-3/4 in. standard
ANSI/BHMA Standard A156.3
