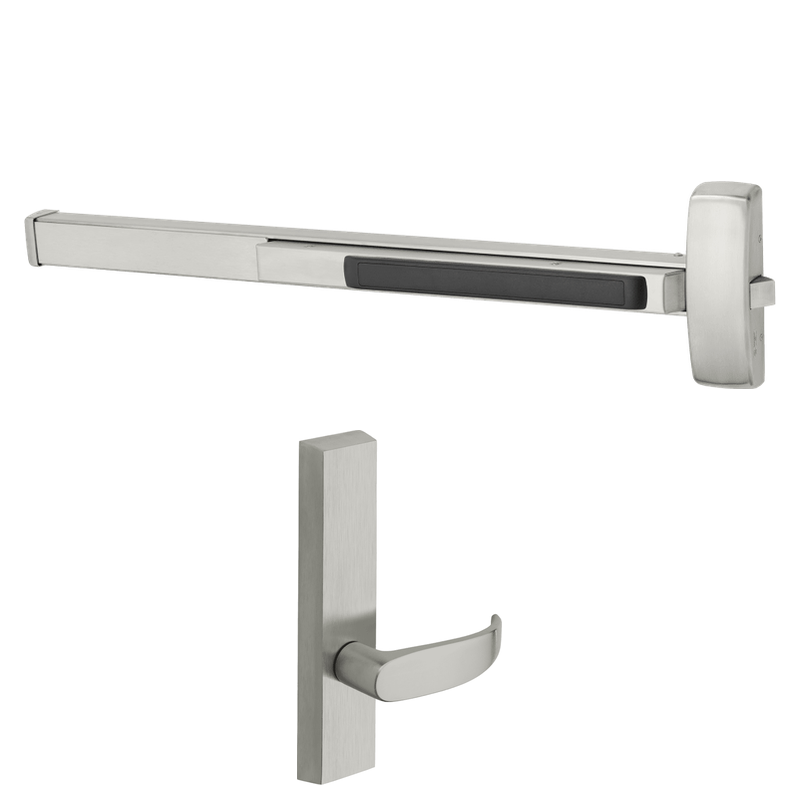

Sargent 12-56-8873-G-ETP-12V Electrified Fire Rated Rim Exit Device, Electric Latch Retraction, Fail Safe Power Off Unlocks Lever, No Cylinder, For 43-48 Inch Width Door, Less Dogging

The Sargent 12-56-8873-G-ETP-12V is a heavy-duty electrified rim exit device built for fire-rated openings that require reliable access control and panic egress. Designed to fit doors between 43 and 48 inches wide, this device features electric latch retraction (ELR) for remote unlocking and seamless integration with card readers, keypads, or building automation systems. Its fail-safe design unlocks the ETP lever trim when power is removed, ensuring secure egress during emergencies. Rated for fire doors, it comes less dogging to maintain code compliance on fire openings. With a Grade 1 construction and 12V operation, this exit device delivers dependable performance in demanding commercial applications.

Features

• Electric latch retraction allows remote unlocking and momentary or sustained latch pull-in for controlled access.
• Fire-rated design is suitable for labeled fire door assemblies requiring panic hardware.
• Fail-safe operation releases the lever trim when power is removed, maintaining egress security.
• ETP lever trim provides a durable, ergonomic grip for access from the outside.
• Sized for wide doors measuring 43 to 48 inches in width.
• Supplied less dogging to comply with fire door code requirements.
• No cylinder configuration for use with electronic access control systems.
• Operates on 12V DC for compatibility with low-voltage power supplies.

Functional Details

The 56- prefix designates electric latch retraction. When energized, a motor pulls the latch bolt into the retracted position, allowing free passage or the latch to be held open for scheduled access. Removing power re-engages the latch for secure fire door operation, while the fail-safe trim keeps egress available at all times.

• Electric latch retraction (ELR) retracts the latch electrically for remote access control.
• Fail safe (power off) unlocks the outside lever trim.
• Fire rated for use on labeled fire door assemblies.
• Furnished less dogging for fire door applications.

Arm Type Details

This is a rim-mounted exit device, with the latching mechanism surface-mounted on the door face and engaging a strike attached to the frame. The ETP lever trim mounts on the pull side for controlled entry when the device is powered.

Included Components

The device ships with the 8800 series rim exit chassis, ETP lever trim, electric latch retraction module, and mounting hardware for 43 to 48 inch wide doors. No cylinder is included, as the unit is intended for electronic access control.
