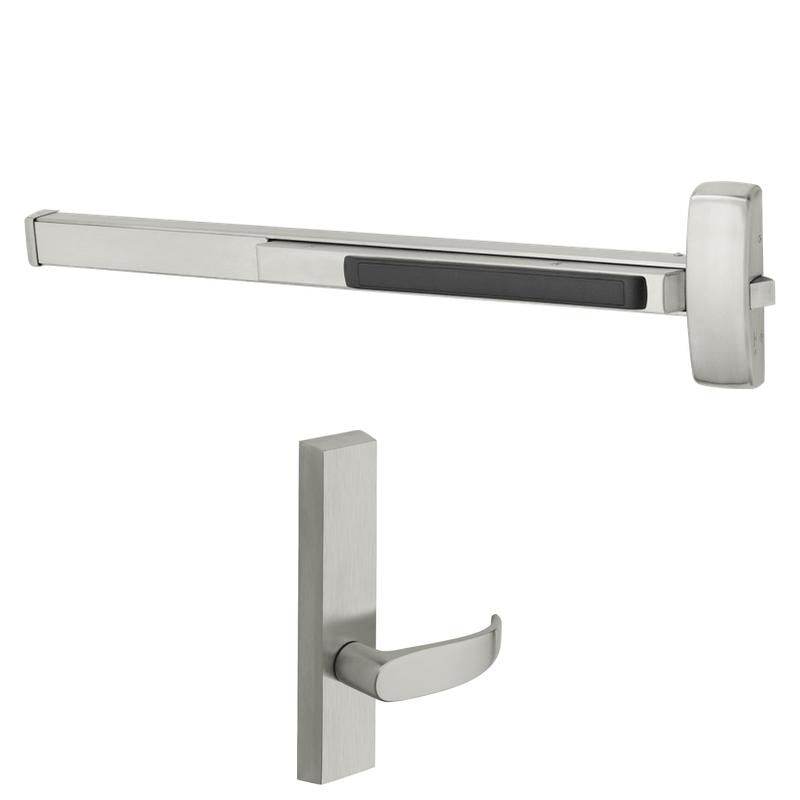

Sargent 12-56-8873-G-ETP-24V Electrified Fire Rated Rim Exit Device, Electric Latch Retraction, Fail Safe Power Off Unlocks Lever, No Cylinder, For 43-48 Inch Width Door, Less Dogging

The Sargent 12-56-8873-G-ETP-24V is an electrified fire rated rim exit device built for high-traffic commercial openings that require remote access control. Featuring Electric Latch Retraction (ELR), this device allows the latch to be retracted electrically for momentary or sustained free access, making it ideal for integration with card readers, timers, or building automation systems. The fail safe design ensures the ETP lever trim unlocks when power is removed, supporting controlled egress during emergencies. Designed for doors ranging from 43 to 48 inches in width, it operates on 24V and ships without a cylinder and without mechanical dogging, in keeping with fire rated requirements.

Features

• Electric Latch Retraction (ELR) allows the latch bolt to be retracted electrically for remote, hands-free access.
• Fail safe operation unlocks the ETP lever trim when power is removed, allowing immediate access.
• UL fire rated for use on labeled fire doors without mechanical dogging.
• Sized for wider openings measuring 43 to 48 inches in door width.
• Operates on 24V DC for compatibility with common access control power supplies.
• Supplied less cylinder, allowing you to specify the preferred keying system.
• Grade 1 construction engineered for durability in demanding commercial environments.

Functional Details

The Electric Latch Retraction function uses an internal motor to withdraw the latch bolt on command, holding it retracted for free passage until power is cycled. When combined with the fail safe ETP trim, loss of power releases the lever to grant access, which is a common configuration for secured perimeter and stairwell doors.

• Electric latch retraction for remote operation and momentary or continuous dogging.
• Fail safe electrified trim unlocks the lever upon power loss.
• No mechanical dogging to maintain fire rating integrity.

Included Components

This device ships as a complete electrified rim exit device with ETP electrified lever trim. A cylinder is not included and must be ordered separately to match your keying requirements.
