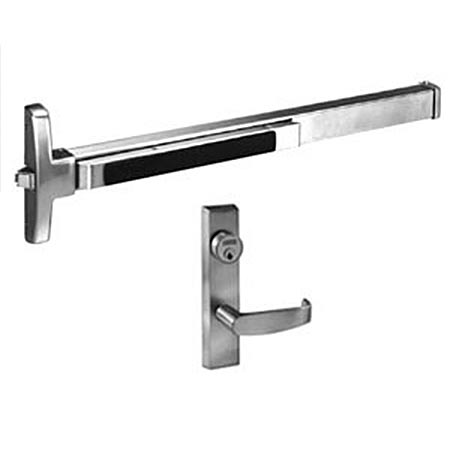

Sargent 8504-ETL
Sargent 8504-ETL
8504 ETL US10B Oil rubbed bronze finish
Sargent 12-8504-F-ETL-US3
Sargent 12-8504-F-ETL-BSP
All SARGENT Products

Sargent 12-8504-F-ETL Fire Rated Narrow Stile Rim Exit Device, Night Latch Function, 33"-36" Bar, ETL Trim

  • SKU: 128504FETLUS32DRHR
  • āœ“
    Available (1‑2 Weeks)
    1-2 Weeks Lead Time
Your Price
$1,952.70/ea
Finish: US32D Satin Stainless Steel (630)
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different
Handing: RHR Right Hand Reverse
Handing Guide:
handing chart image

Sargent 12-8504-F-ETL Fire Rated Narrow Stile Rim Exit Device, L Lever, Night Latch Key Retracts Latch Bolt, 33-36 In Door, No Dogging, Grade 1

The Sargent 12-8504-F-ETL is a fire-rated narrow stile rim exit device designed for doors measuring 33 to 36 inches. Featuring an L lever and a night latch function that retracts the latch bolt with a key, this Grade 1 device offers reliable security without dogging capability. Ideal for high-traffic areas requiring code-compliant egress hardware.

8504 ET Trim Function: 704 NightLatch

Vendor Assa Abloy
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
ANSI Number 1
BAA Qualified Yes
Limited Warranty 5 Years
Physical Appearance Narrow Stile Pushpad
Device Type Rim
Device Lenght 36"
Mechanical Function Exit Only
Trim ETL
Minimum Stile Size 2"
Door Material Aluminum
Door Thickness 1-3/4" to 2-1/4"
Door Width 33" to 36"
Cylinder OPTIONAL
HandedĀ  Yes
Fire Rated Yes
Product Type Rim Exit Devices
Product Cut Sheet

Panic Handing Chart
