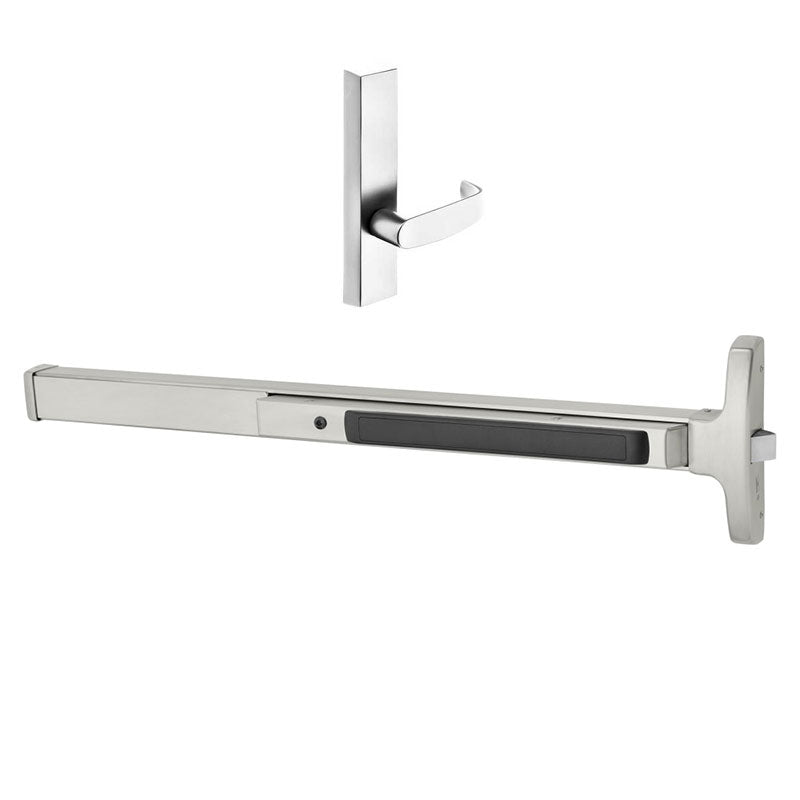

Sargent 12-8515-G-ETL Fire Rated Narrow Stile Rim Exit Device, Passage Function, Non-Keyed, ETL Trim, 43"-48" Bar

  • SKU: 128515GETLUS32DLHR
Sargent 12-8515-ETL
Sargent 12-8515-ETL
All SARGENT Products

Sargent 12-8515-G-ETL Fire Rated Narrow Stile Rim Exit Device, Passage Function, Non-Keyed, ETL Trim, 43"-48" Bar

  • SKU: 128515GETLUS32DLHR
$1,757.43/ea
In Stock
In Stock
Handing Guide:
handing chart image
  • LHR - Left Hand Reverse
  • RHR - Right Hand Reverse
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse

Technical Specs

Physical Appearance Narrow Stile Pushpad
Device Type Rim
Mechanical Function Lever Classroom
Device Length 48"
Includes Trim Yes, ETL
Minimum Stile Size 2"
Door Material Aluminum
Door Width 43 In. to 48 In.
Door Thickness 1-3/4" to 2-1/4"
Fire Rated Yes
Product Type Rim Exit Devices

Product Specs

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No


Sargent 12-8515-G-ETL is a 43"-48" Fire Rated Narrow Stile Rim Exit Device with Lever Passage Trim Non-Keyed, The 8515 With ETL Lever Trim Is Ideal For Use In Institutions and Commercial Spaces, Healthcare Facilities. The 8515 Is a Narrow Stile Rim Exit Device Handed LHR Or RHR In US32D Satin Stainless Steel Or US10B Oxidized Dull Bronze Finishes.
