Sargent 12-8574-E-ETL-24V Narrow Stile Rim Exit Device Electrified (12) Fire Rated, 24"-32" Bar, ETL Trim, 24V, Fail Secure

  • SKU: 128574EETL24VUS32DLHR

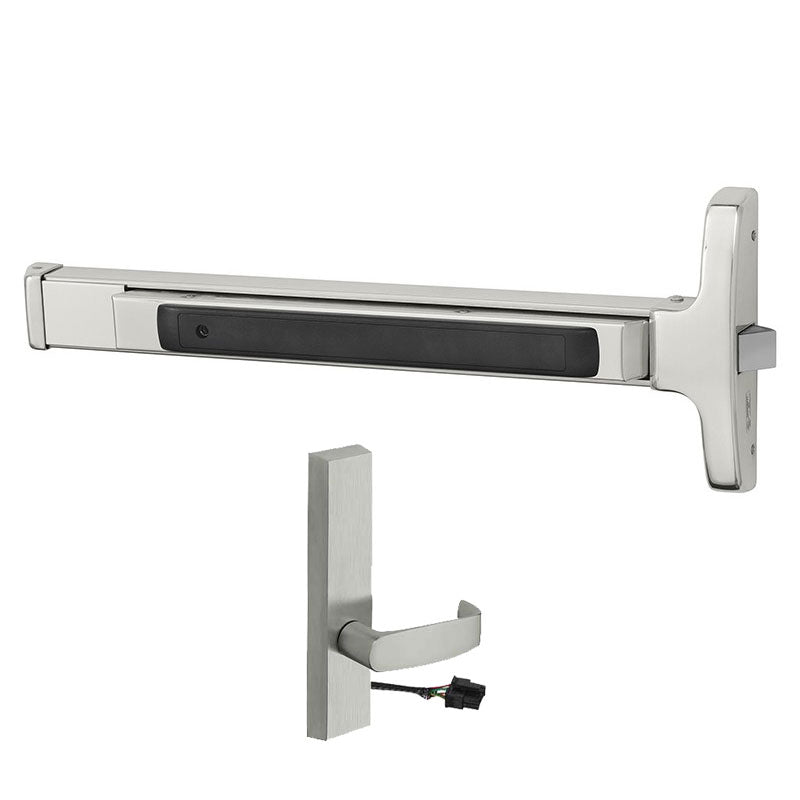

Sargent 12-8574-E-ETL-24V-US32D Narrow Stile Rim Exit Device Electrified
Sargent 12-8574-E-ETL-24V-US32D Narrow Stile Rim Exit Device Electrified
Sargent 12-8574-E-ETL-24V-US10B Narrow Stile Rim Exit Device Electrified
Zoomed view
All SARGENT Products

Sargent 12-8574-E-ETL-24V Narrow Stile Rim Exit Device Electrified (12) Fire Rated, 24"-32" Bar, ETL Trim, 24V, Fail Secure

  • SKU: 128574EETL24VUS32DLHR
  • ✓
    Available (2 Weeks)
    2 Weeks Lead Time
Your Price
$2,434.32/ea
0% Net 30 Days: Apply Now
Finish: US32D Satin Stainless Steel (630)
Handing: LHR Left Hand Reverse
Handing Guide:
handing chart image

The Sargent 12-8574-E-ETL-24V is a 24"-32" Narrow Stile Rim Exit Device that is  Electrified, 24 Volt,  Fire-Rated, comes with an ET Trim, Fail Secure Power Off Locks Lever function, and is offered in US32D Stainless Steel or US10B Oil Rubbed Bronze Finishes.

74 Electrified ET Trim - Fail Secure
Power Off, Locks Lever (No Cylinder)

The 8500 Narrow Design Rim Exit Device is designed for narrow stile applications and features a rim bolt for quiet operation and security.

The 8500 Series has a quiet operation with solid security. The single-point rim latching device works nicely to help complete Sargent's full line of exit devices that provide the best combination of durability and innovation.
  • Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" specify thickness and order as a 31- prefix.  1 3/4" (44mm) minimum stile
  • Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Manufacturer Sargent
SKU 12-8574E
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance Yes



Physical Appearance Narrow Stile Pushpad
Device Type Rim
Mechanical Function Device to Accept Electrified Trim
Device Length 32"
Hand LHR or RHR
Electric Options Fail Secure
Dogging Options Less Dogging
Includes Trim Yes
Trim Type Lever
Trim Design Non-Keyed Electric Lever
Trim Part No. 774-8 ETL 24V
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Door Material Wood or Metal
Door Width 24" to 32"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices

Product Cut Sheet

Panic Handing Chart
