Description

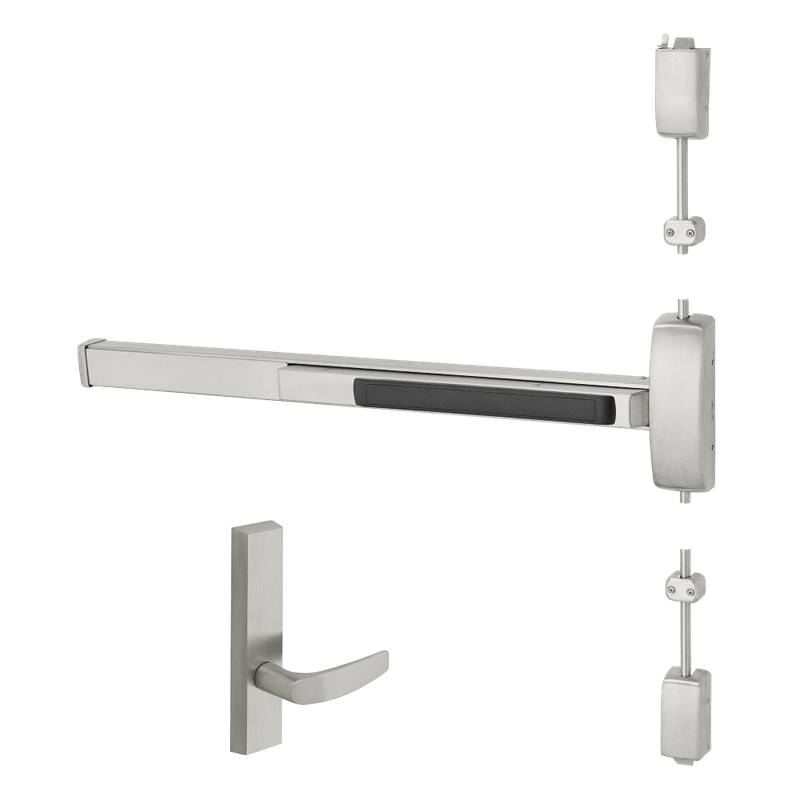

Sargent 12-8715-F-ETB-84 Fire Rated Surface Vertical Rod Exit Device, Passage Function, ET Control, B Lever, 33-36 Inch Door, 84 Inch Door Height, Less Dogging
The Sargent 12-8715-F-ETB-84 is a fire-rated surface vertical rod exit device built for reliable egress on commercial openings up to 84 inches in height and 33 to 36 inches in width. Configured with passage function and the ETB (ET trim with B lever) control, it allows free operation from both sides, making it ideal for high-traffic corridors and fire door assemblies that require constant access. As a fire-rated device, it ships less dogging to meet code requirements. Durable construction and surface-mounted vertical rods provide dependable latching at top and bottom, ensuring consistent performance in demanding institutional and commercial environments.
Features
- Fire-rated surface vertical rod exit device suitable for labeled fire door assemblies.
- Passage function provides free operation from both the inside and outside at all times.
- ETB trim with a B lever design offers a comfortable, ergonomic grip.
- Designed for doors 33 to 36 inches wide and up to 84 inches in height.
- Supplied less dogging to comply with fire door code requirements.
- Top and bottom latching for secure, two-point engagement.
Functional Details
The passage (exit only / non-locking) function allows the door to be opened freely from either side by depressing the push bar or operating the lever trim. There is no locking of the outside trim, providing unrestricted passage in both directions.
- Passage function – latch retracted by lever or push bar from either side at all times.
Arm Type Details
This device uses surface-mounted vertical rods that extend to the top and bottom of the door, engaging strikes at both points. The surface configuration simplifies installation and service compared to concealed rod designs while maintaining dependable latching.
Included Components
The device ships with the 8715 surface vertical rod exit device chassis, ETB lever trim, top and bottom latch mechanisms, mounting hardware, and strikes required for installation on a fire-rated door.
Product Specifications
| Manufacturer | Sargent |
| SKU | 12-8715-F-ETB-84 |
| Device Type | Surface Vertical Rod Exit Device |
| Function | Passage |
| Trim | ETB (ET with B Lever) |
| Grade | ANSI/BHMA Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL Fire Rated Panic Hardware |
| ANSI Number | A156.3 |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
Technical Specifications
| Series | 8700 Series |
| Door Width Range | 33 to 36 inches |
| Door Height | Up to 84 inches |
| Latching Points | Top and bottom (two-point) |
| Dogging | Less Dogging (fire rated) |
| Mounting | Surface mounted |
| Rod Type | Surface vertical rod |
| Door Type | Fire-rated swinging door |
| Handing | Non-handed device |
| Fire Rating | Up to 3 hours |
