Description

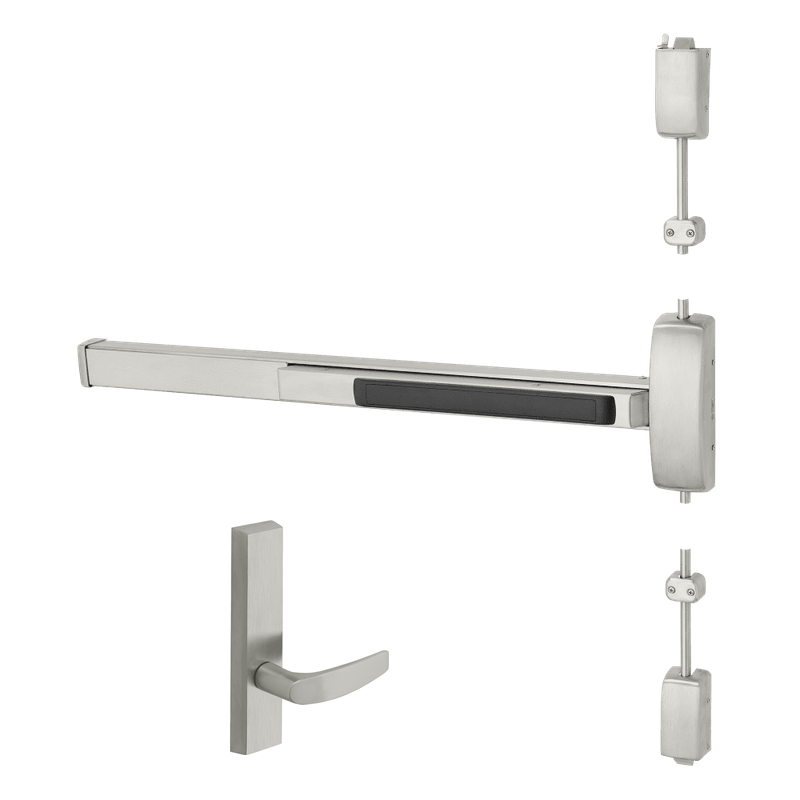

Sargent 12-8715-F-ETB-96 Fire Rated Surface Vertical Rod Exit Device, Passage Function, ET Control, B Lever, 33-36 Inch Door, 96 Inch Door Height, Less Dogging
The Sargent 12-8715-F-ETB-96 is a fire rated surface vertical rod exit device built for demanding commercial openings up to 96 inches in height and door widths from 33 to 36 inches. Configured with passage (exit only) function, it allows free egress at all times while the ETB trim provides outside access with a B lever design. As a fire rated device, it comes less dogging to meet code requirements on fire-rated door assemblies. Durable construction and smooth operation make this a dependable choice for schools, hospitals, offices, and other high-traffic buildings where reliable life-safety hardware is essential.
Features
- Surface-mounted vertical rod design suited for both single and double door applications.
- Fire rated construction for use on labeled fire door assemblies.
- Passage function allows free egress with no latching from the exterior.
- ETB trim with B lever provides exterior access and a clean, ergonomic grip.
- Sized for doors 33 to 36 inches wide and up to 96 inches in height.
- Supplied less dogging to comply with fire rating requirements.
Functional Details
The passage (exit) function provides unrestricted egress through the device at all times, while the outside ET trim lever retracts the latches to allow entry when permitted. Because the device is fire rated, it is supplied less dogging to keep the latches engaged under fire conditions.
- Passage function – exit only, latches retract from inside at all times.
- Outside lever (ETB) operates latch for entry.
- Less dogging as required for fire rated applications.
Arm Type Details
This exit device uses a surface vertical rod configuration, with top and bottom rods that engage strikes at the head and sill of the door frame. When the push bar is actuated, both rods retract simultaneously to release the door, offering secure two-point latching ideal for taller openings.
Included Components
The device ships with the surface vertical rod chassis, ETB outside trim with B lever, top and bottom latch assemblies, strikes, and mounting hardware for installation on the specified door size.
Product Specifications
| Manufacturer | Sargent |
| SKU | 12-8715-F-ETB-96 |
| Device Type | Surface Vertical Rod Exit Device |
| Function | Passage (Exit Only) |
| Trim | ETB with B Lever |
| Fire Rating | Fire Rated |
| Grade | ANSI/BHMA Grade 1 |
| Door Width Range | 33 to 36 Inches |
| Door Height | 96 Inches |
| Dogging | Less Dogging |
| UL Listing Type | UL Listed for Fire Doors |
| Origin | USA |
| Unit of Measure | Each |
| Limited Warranty | Yes |
Technical Specifications
| Series | 8700 Series |
| Latching Points | Two-Point (Top and Bottom) |
| Mounting Style | Surface Mounted |
| Maximum Door Width | 36 Inches |
| Minimum Door Width | 33 Inches |
| Maximum Door Height | 96 Inches |
| Latch Bolt Throw (Top) | 3/4 Inch |
| Latch Bolt Throw (Bottom) | 1/2 Inch |
| ANSI Function | Passage / Exit Only |
| Compliance | ANSI/BHMA A156.3 |
| Fire Door Rating | Up to 3 Hours |
