Description

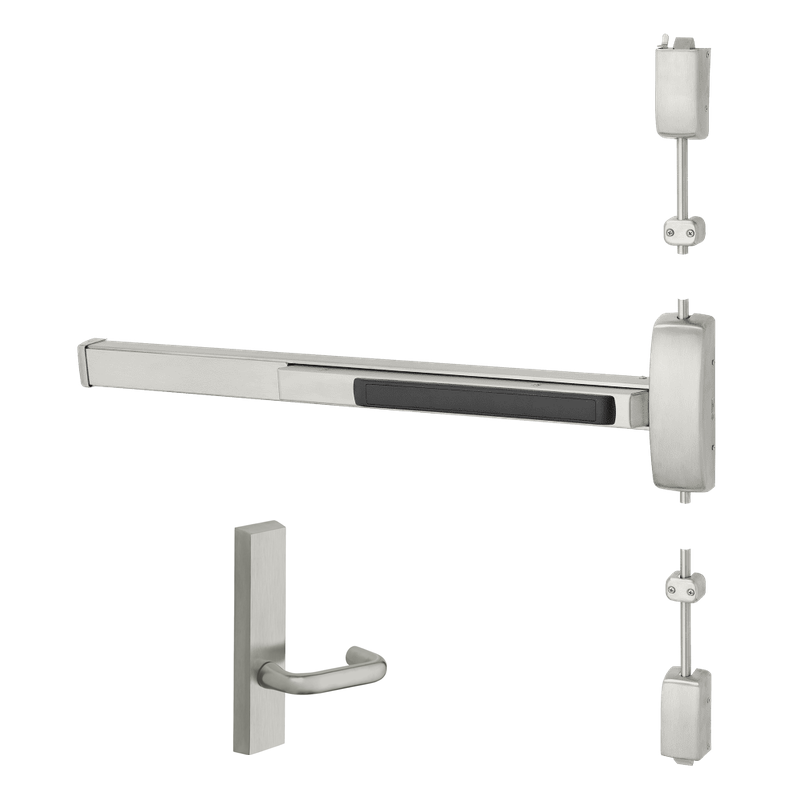

Sargent 12-8715-F-ETJ-84 Fire Rated Surface Vertical Rod Exit Device, Passage Function, ET Control, J Lever, 33-36 Inch Door, 84 Inch Door Height, Less Dogging
The Sargent 12-8715-F-ETJ-84 is a fire rated surface vertical rod exit device built for heavy-duty commercial openings that demand dependable egress. Configured for passage function with ET trim and the J lever, it allows free operation from both sides, making it ideal for high-traffic doors where latching control isn't required. Designed to fit doors 33 to 36 inches wide and up to 84 inches tall, this device meets fire-rated requirements and ships less dogging to maintain positive latching in fire applications. Backed by Sargent's reputation for durability, it delivers consistent performance in schools, hospitals, offices, and other institutional environments.
Features
- Surface-mounted vertical rod design provides secure top and bottom latching on fire-rated doors.
- Passage function allows free entry and exit from both sides with no latching required.
- ET control with the J lever offers a comfortable, ADA-friendly outside trim option.
- Fire rated construction supports code compliance on labeled door assemblies.
- Sized for doors 33 to 36 inches wide and 84 inches in height.
- Supplied less dogging to preserve positive latching in fire-rated use.
Functional Details
The passage function (12-8715) means the outside lever is always unlocked, permitting free passage from both sides of the opening. Pushing the touchpad or operating the lever retracts the latches for unrestricted movement in either direction.
Arm Type Details
The ETJ trim pairs the ET (Escutcheon Trim) control with the J lever design, providing a sturdy, ergonomic pull on the exterior of the door. The lever operates smoothly to retract the latch when the function permits entry from the outside.
Included Components
This device includes the surface vertical rod exit chassis, top and bottom latch assemblies, vertical rods, ET escutcheon trim with the J lever, and the mounting hardware required for installation on a fire-rated door.
Product Specifications
| Manufacturer | Sargent |
| SKU | 12-8715-F-ETJ-84 |
| Grade | ANSI/BHMA Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | Fire Exit Hardware |
| ANSI Number | A156.3 |
| Function | Passage (Exit Only) |
| Trim Type | ET Control with J Lever |
| Dogging | Less Dogging |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
Technical Specifications
| Device Type | Surface Vertical Rod Exit Device |
| Door Width Range | 33 to 36 inches |
| Door Height | 84 inches |
| Fire Rating | Fire Rated (F) |
| Latch Points | Top and Bottom |
| Mounting | Surface Mount |
| Series | 8700 Series |
| Lever Style | J Lever |
| Trim Function Code | 8715 |
| Door Type | Wood or Hollow Metal |
