Description

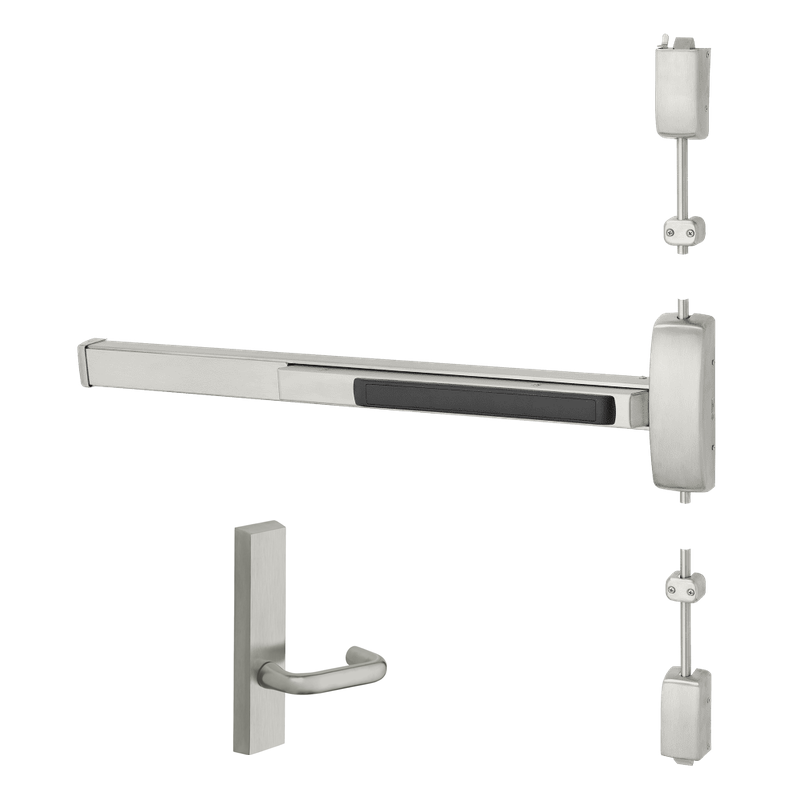

Sargent 12-8715-F-ETJ-96 Fire Rated Surface Vertical Rod Exit Device, Passage Function, ET Control, J Lever, 33-36 Inch Door, 96 Inch Door Height, Less Dogging
The Sargent 12-8715-F-ETJ-96 is a fire-rated surface vertical rod exit device engineered for demanding commercial openings. Built for doors 33 to 36 inches wide and up to 96 inches tall, it pairs reliable panic egress with passage function, allowing free operation from both sides when the latch is retracted. The ET trim with the J lever delivers a clean, ergonomic feel that meets ADA requirements, while the surface-mounted top and bottom rods secure the door at two points for added stability. As a fire-rated unit, it ships less dogging to maintain positive latching required on fire door assemblies.
Features
- Fire-rated surface vertical rod design for use on labeled fire door assemblies.
- Passage function (12-8715) allows free operation from both sides with no locking.
- ET exterior trim with the J lever provides comfortable, code-compliant access.
- Sized for doors 33 to 36 inches wide and 96 inches in height.
- Top and bottom rod latching secures the door at two points for improved alignment and performance.
- Less dogging, as required for fire-rated applications, to preserve automatic relatching.
- Durable construction suited to high-traffic commercial and institutional environments.
Functional Details
The passage function keeps the exit device unlocked for continuous two-way traffic. The outside lever always retracts the latch, and panic hardware on the push side provides immediate egress at any time.
- Latchbolt operated by lever from either side at all times.
- No locking function.
Arm Type Details
This device uses a surface-mounted vertical rod configuration. The rods run along the face of the door to top and bottom latch points, engaging the frame header and the floor or threshold strike to hold the door secure while allowing quick, single-motion release through the push bar.
Included Components
The device ships with the surface vertical rod mechanism, top and bottom latches, ET exterior trim with J lever, and the required mounting hardware for installation on a fire-rated door.
Product Specifications
| Manufacturer | Sargent |
| SKU | 12-8715-F-ETJ-96 |
| Product Type | Surface Vertical Rod Exit Device |
| Function | Passage (Exit Only / ET Control) |
| Grade | ANSI/BHMA Grade 1 |
| Fire Rating | Fire Rated (Less Dogging) |
| Lever Style | J Lever |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed for Fire Doors and Panic Hardware |
| ANSI Number | ANSI/BHMA A156.3 |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
Technical Specifications
| Device Series | 8700 Series |
| Door Width Range | 33 in. to 36 in. |
| Door Height | 96 in. |
| Mounting Type | Surface Vertical Rod |
| Latch Points | Top and Bottom |
| Dogging | Less Dogging |
| Trim Function | ET (Passage) |
| Minimum Stile Width | 5 in. (typical) |
| Push Bar Travel | Standard low-profile touchpad |
| Door Type | Fire-Rated Single or Double Door |
