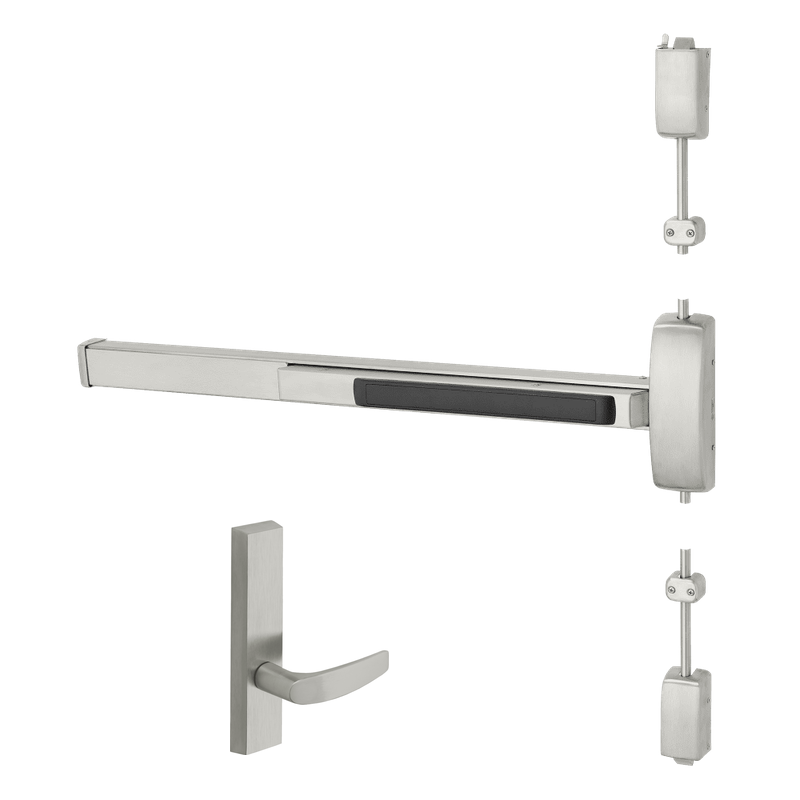

Sargent 12-8715-G-ETB-84 Fire Rated Surface Vertical Rod Exit Device, Passage Function, ET Control, B Lever, 43-48 Inch Door, 84 Inch Door Height, Less Dogging

The Sargent 12-8715-G-ETB-84 is a fire-rated surface vertical rod exit device built for heavy-traffic commercial openings that demand reliable egress and code compliance. Configured for passage function, it allows free movement from either side, making it ideal for corridors and busy entry points where latching control isn't required. This model accommodates doors measuring 43 to 48 inches wide and 84 inches tall, and comes paired with the ETB trim featuring the B lever for comfortable operation. As a fire-rated device, it ships less dogging to meet life-safety requirements. Durable construction and trusted Sargent engineering make this a dependable choice for institutional and commercial facilities.

Features

• Fire-rated surface vertical rod design suitable for labeled fire door assemblies.
• Passage function provides free operation from both sides of the opening.
• ETB trim with B lever delivers an ergonomic, ADA-friendly grip.
• Sized for doors 43 to 48 inches wide and 84 inches in height.
• Supplied less dogging to satisfy fire door code requirements.
• Top and bottom latching provides secure two-point engagement.
• Heavy-duty build engineered for high-use commercial environments.

Functional Details

The passage function (ET control) keeps the latch retracted so the door can be pushed or pulled freely from either side without a key, while the exit device maintains proper fire door latching on the frame and sill.

• Passage function: Latch bolt retracted by lever from either side at all times.
• Outside lever always unlocked (free).
• Exit device always operable for free egress.

Arm Type Details

This is a surface-mounted vertical rod exit device. Vertical rods run along the door face to engage top and bottom latch points, securing the door at two locations for added stability and alignment on taller openings.
