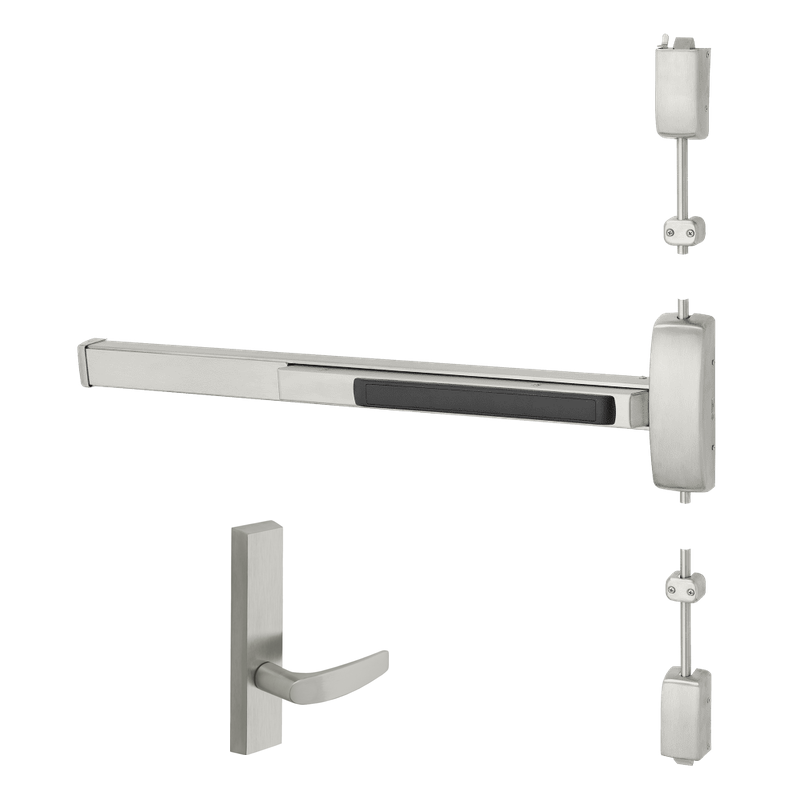

Sargent 12-8715-J-ETB-84 Fire Rated Surface Vertical Rod Exit Device, Passage Function, ET Control, B Lever, 37-42 Inch Door, 84 Inch Door Height, Less Dogging

The Sargent 12-8715-J-ETB-84 is a fire rated surface vertical rod exit device engineered for heavy commercial and institutional openings. Configured for passage function, it provides free egress at all times with no locking of the outside trim, making it ideal for high-traffic corridors and stairwells. This unit fits doors measuring 37 to 42 inches wide and up to 84 inches in height, and comes with the ETB (B lever) ET trim for reliable through-door operation. Built to UL fire door standards and supplied less dogging, it meets code requirements for fire-rated assemblies while delivering the durability Sargent is known for.

Features

• Fire rated surface vertical rod exit device suitable for labeled fire door assemblies.
• Passage function allows free operation of the exterior trim at all times.
• Designed for doors 37 to 42 inches wide and up to 84 inches in height.
• Supplied less dogging, as required for fire-rated applications.
• Includes ETB trim with the B lever design for comfortable grip and smooth actuation.
• Surface-mounted top and bottom rods provide secure two-point latching.

Functional Details

The passage function keeps the outside lever active at all times, allowing anyone to open the door from either side without a key. The device latches automatically when the door closes, ensuring the fire-rated opening stays secured.

• Exit device always operative from inside for free egress.
• Outside lever always active to retract the latch bolts.
• No key required for operation.

Included Components

This assembly ships with the 8715 surface vertical rod exit device chassis, top and bottom latch rods, and the ETB (B lever) ET exterior trim for passage operation.
