Description

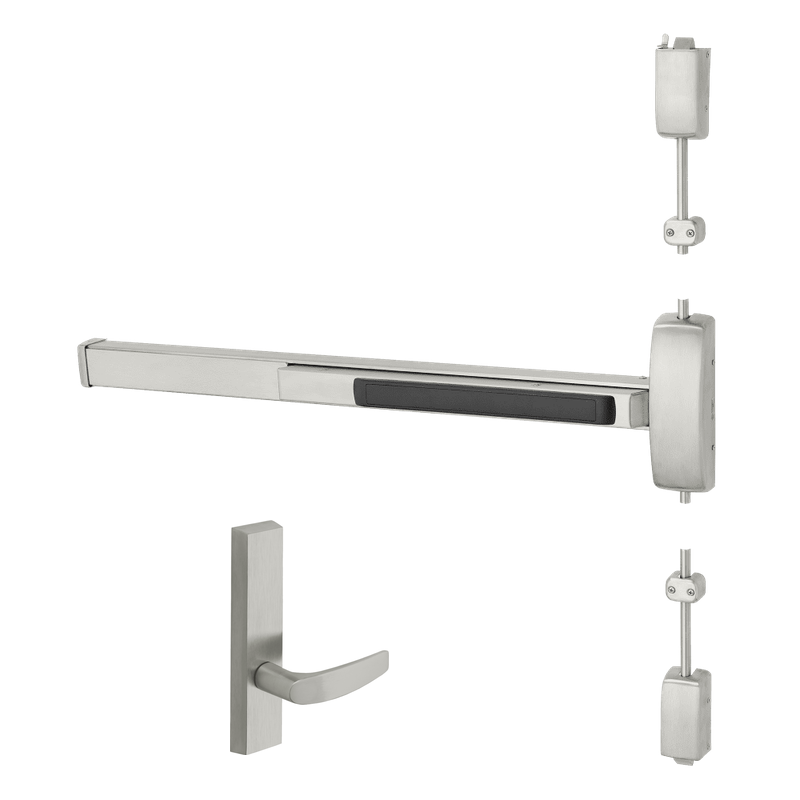

Sargent 12-8715-J-ETB-96 Fire Rated Surface Vertical Rod Exit Device, Passage Function, ET Control, B Lever, 37-42 Inch Door, 96 Inch Door Height, Less Dogging
The Sargent 12-8715-J-ETB-96 is a fire-rated surface vertical rod exit device engineered for demanding commercial openings. Configured for passage function (ET control with the B lever trim), it delivers free entry and exit without locking, making it ideal for high-traffic corridors, stairwells, and fire-rated doors where reliable egress is essential. Built to fit doors ranging from 37 to 42 inches in width and up to 96 inches in height, this device combines durable surface-mounted construction with a less dogging design required for fire-rated applications. As part of Sargent's respected 80 Series, it offers dependable performance and long-term value.
Features
- Fire-rated surface vertical rod exit device suitable for labeled door assemblies.
- Passage function provides unrestricted entry and exit at all times.
- ET control with the B lever trim for comfortable, ADA-friendly operation.
- Fits doors from 37 to 42 inches wide and up to 96 inches in height.
- Less dogging design, as required for fire-rated openings.
- Durable surface-mounted construction for heavy commercial use.
Functional Details
The passage function (12-8715) allows the door to be pushed or pulled open freely from either side, with the latch retracting whenever the push bar or lever is actuated. There is no locking of the outside trim, ensuring continuous free access while maintaining positive latching on fire-rated doors.
Arm Type Details
As a surface vertical rod device, the top and bottom latch bolts are driven by vertical rods mounted to the door face. Depressing the push bar simultaneously retracts both the top and bottom latch bolts, releasing the door, while spring tension re-engages the bolts into the strikes when the door closes.
Included Components
The device ships with the surface-mounted vertical rod exit chassis, top and bottom latch assemblies, ETB lever trim, and standard mounting hardware for installation on the specified door size.
Product Specifications
| Manufacturer | Sargent |
| SKU | 12-8715-J-ETB-96 |
| Series | 80 Series |
| Device Type | Surface Vertical Rod Exit Device |
| Function | Passage (ET Control) |
| Trim | ETB Lever (B Lever) |
| Grade | Grade 1 |
| Fire Rating | Fire Rated (Less Dogging) |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL Listed for Fire |
| ANSI Number | ANSI/BHMA A156.3 |
| Limited Warranty | Yes |
Technical Specifications
| Door Width Range | 37 to 42 inches |
| Door Height | 96 inches |
| Mounting | Surface Mounted |
| Latch Configuration | Top and Bottom Vertical Rod |
| Dogging | Less Dogging |
| Handing | Non-Handed |
| Lever Style | B Lever |
| Device Length Coverage | Full Width (37-42 in.) |
| Latch Bolt Throw | Top and Bottom Bolt Engagement |
| Door Type | Fire-Rated Labeled Doors |
