Description

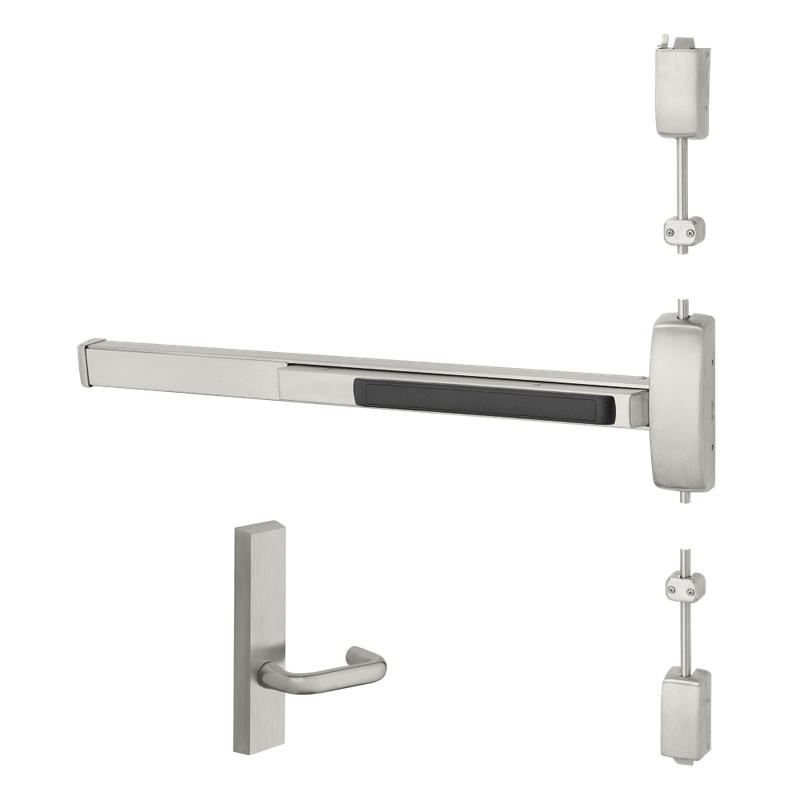

Sargent 12-8715-J-ETJ-84 Fire Rated Surface Vertical Rod Exit Device, Passage Function, ET Control, J Lever, 37-42 Inch Door, 84 Inch Door Height, Less Dogging
The Sargent 12-8715-J-ETJ-84 is a fire rated surface vertical rod exit device built for heavy traffic commercial openings where life safety and durability matter. Configured for passage function with the ET trim and J lever, it provides free operation from both sides, making it ideal for corridors, stairwells, and other openings that do not require locking. Designed to fit doors from 37 to 42 inches wide and up to 84 inches tall, this device meets strict fire-rated requirements and comes less dogging to maintain positive latching. As part of Sargent's 80 Series, it delivers the rugged construction and dependable performance expected in demanding institutional and commercial environments.
Features
- Fire rated surface vertical rod exit device suitable for labeled fire door assemblies.
- Passage function allows free operation with no locking from either side of the door.
- Supplied with ET trim and the J lever design for comfortable, code-compliant access.
- Sized for doors measuring 37 to 42 inches wide and up to 84 inches in height.
- Less dogging construction maintains positive latching required for fire-rated openings.
- Surface mounted top and bottom rods provide secure two-point latching.
Functional Details
The passage function (12-8715) allows the exit device and outside trim to operate freely at all times, with no key or locking required. Depressing the push rail or operating the lever retracts the latches, allowing free passage in both directions.
- Exit device operates by pushing the push rail, retracting the top and bottom latch bolts.
- Outside lever is always active, allowing free ingress and egress.
- Less dogging to maintain positive latching on fire rated applications.
Arm Type Details
This model uses the ET (Escutcheon Trim) control with the J lever. The ET trim mounts to the door exterior and connects to the exit device, while the J lever provides smooth, ergonomic operation that complies with accessibility requirements.
Included Components
The device ships with the surface vertical rod chassis, top and bottom latch assemblies, mounting rods, ET escutcheon trim, and the J lever.
Product Specifications
| Manufacturer | Sargent |
| SKU | 12-8715-J-ETJ-84 |
| Grade | ANSI/BHMA Grade 1 |
| Origin | United States |
| Unit of Measure | Each |
| UL Listing Type | UL Listed for Fire Door (3 Hour) |
| ANSI Number | ANSI/BHMA A156.3 |
| BAA Qualified | Yes |
| Function | Passage |
| Trim Type | ET Control with J Lever |
| Limited Warranty | Yes |
Technical Specifications
| Device Type | Surface Vertical Rod Exit Device |
| Series | 80 Series |
| Door Width Range | 37 to 42 inches |
| Door Height | 84 inches |
| Mounting | Surface Mount |
| Latch Points | Top and Bottom |
| Dogging | Less Dogging |
| Fire Rating | Up to 3 Hour |
| Lever Style | J Lever |
| Door Type | Wood or Hollow Metal |
| Handing | Non-Handed |
